Trays drying room and Rotary dryer are both for reference
Standard drying room solutions for dry less than 3000kg a batch, if you require larger production capacity, Please contact us for more information.
Different heat sources available, Generally are electricity, steam, natural gas, diesel, biomass pellets, coal, firewood, air energy. If there are other heat source, please also contact us for design.(You can click each heat source to check our drying room)
Please check our video here, or you can visit our YOUTUBE channel to check more.

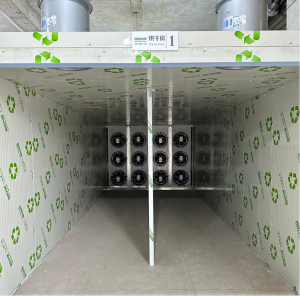

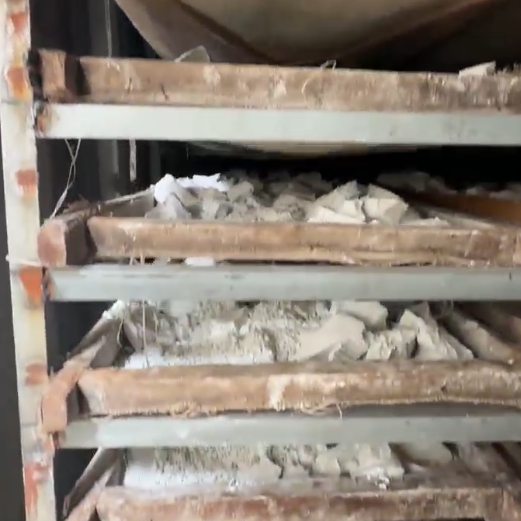

Description of red fire series drying room
Our company has developed the Red-Fire series drying room which is highly acclaimed domestically and globally. It is designed for tray-type drying and features a unique left-right/right-left periodic alternating hot air circulation system. The generated hot air cycles to ensure even heating and rapid dehydration in all directions. Automatic temperature and humidity control significantly reduces energy consumption. This product holds a utility model patent certificate.
Advantages
1.The control system adopts PLC programming + LCD touch screen, which can set up to 10 segments of temperature and humidity settings. Parameters can be adjusted according to the different properties of the stuff that make the drying process is not affected by external environmental factors, ensuring excellent color and high quality of the finished product.
2.One button start for unattended operation, automation, The machine stops after finish set drying program. It can be equipped with a remote control system, mobile app remote monitoring.
3.Left-right/right-left 360° alternating hot air circulation, ensuring uniform heating of all stuffs in the drying room, avoiding uneven temperature and mid-process adjustment.
4.The circulation fan take a high-temperature resistant, high-airflow, long-life axial flow fan, ensuring sufficient heat and rapid temperature rise in the drying room.
5.Various sources can be used, such as air heat pumps, natural gas, steam, electricity, biomass pellet, coal, firewood, diesel, hot water, thermal oil, methanol, gasoline, etc., depending on the local conditions.
6.Modular drying room which consisted of a hot air generator + drying room + drying pushcart. Low transportation cost and convenient installation. It can be assembled by two people in one day.
7.The shells of hot air generator and drying room both are made of high-density fire-resistant insulation cotton + sprayed/stainless steel sheet which are beautiful and durable.
Specification Sheet
|
No. |
item |
unit |
Model |
|||
|
1、 |
Name |
/ |
HH1000 |
HH2000A |
HH2000B |
HH3300 |
|
2、 |
Structure |
/ |
（Van type） |
|||
|
3、 |
Outer dimensions (L*W*H) |
mm |
5000×2200×2175 |
5000×4200×2175 |
6600×3000×2175 |
7500×4200×2175 |
|
4、 |
Fan power |
KW |
0.55*6+0.9 |
0.55*12+0.9*2 |
0.55*12+0.9*2 |
0.75*12+0.9*4 |
|
5、 |
Hot air temperature range |
℃ |
Atmospheric temperature ~120 | |||
|
6、 |
Loading capacity（Wet stuff） |
kg/ batch |
1000-2000 |
2000-4000 |
2000-4000 |
3300-7000 |
|
7、 |
Effective drying volume |
m3 |
20 |
40 |
40 |
60 |
|
8、 |
Number of pushcarts |
set |
6 |
12 |
12 |
20 |
|
9、 |
Number of trays |
pieces |
90 |
180 |
180 |
300 |
|
10、 |
Stacked pushcart dimensions (L*W*H) |
mm |
1200*900*1720mm |
|||
|
11、 |
Material of tray |
/ |
Stainless steel/Zinc plating | |||
|
12、 |
Effective drying area |
m2 |
97.2 |
194.4 |
194.4 |
324 |
|
13、 |
Hot air machine model
|
/ |
10 |
20 |
20 |
30 |
|
14、 |
Outer dimension of Hot air machine
|
mm |
1160×1800×2100 |
1160×3800×2100 |
1160×2800×2100 |
1160×3800×2100 |
|
15、 |
Fuel/Medium |
/ |
Air energy heat pump, natural gas, steam, electricity, biomass pellet, coal, wood, hot water, thermal oil, methanol, gasoline and diesel | |||
|
16、 |
Heat output of hot air machine |
Kcal/h |
10×104 |
20×104 |
20×104 |
30×104 |
|
17、 |
voltage |
/ |
380V 3N |
|||
|
18、 |
Temperature range |
℃ |
Atmospheric temperature |
|||
|
19、 |
Control system |
/ |
PLC+7（7 inch touch screen） |
|||
Dimension Drawing

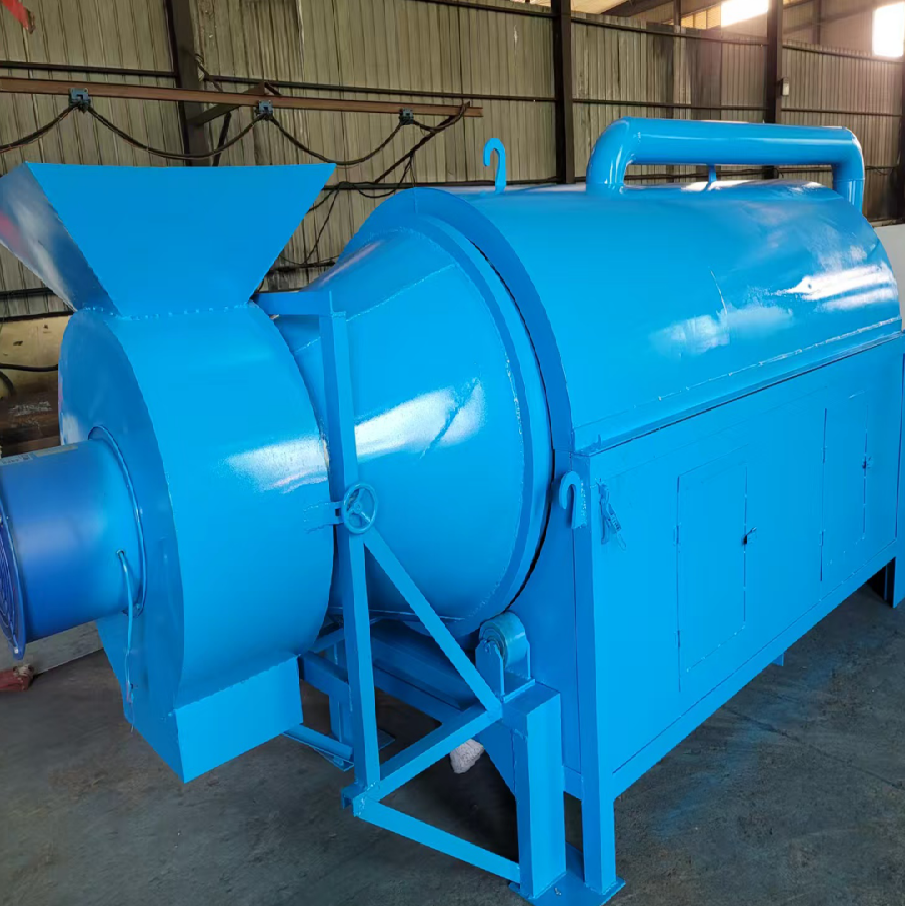

Description of rotary drum dryer
The thermal air convection type A intermittent discharge rotary dryer is a fast dehydrating and drying device developed by our company special for granular, twig-like, flake-like, and other solid stuffs. It consists of six parts: feeding system, transmission system, drum unit, heating system, dehumidifying and fresh air system, and control system. The feeding system starts and the transmission motor rotates forward to convey stuffs into the drum. After that, the feeding system stops and the transmission motor continues to rotate forward, tumbling stuffs. At the same time, the hot air system start to work, make new hot air enters the interior through holes on the drum to fully contact the stuff, transferring heat and removing moisture, the exhaust gas enters the heating system for secondary heat recovery. After the humidity reaches the emission standard, the dehumidifying system and fresh air system start simultaneously. After sufficient heat exchange, the humid air is discharged, and the preheated fresh air enters the hot air system for secondary heating and utilization. After the drying is completed, the hot air circulation system stops working, and the transmission motor reverses to discharge stuffs, completing this drying operation.
