Western Flag – Small waste incinerator and heater
Overview

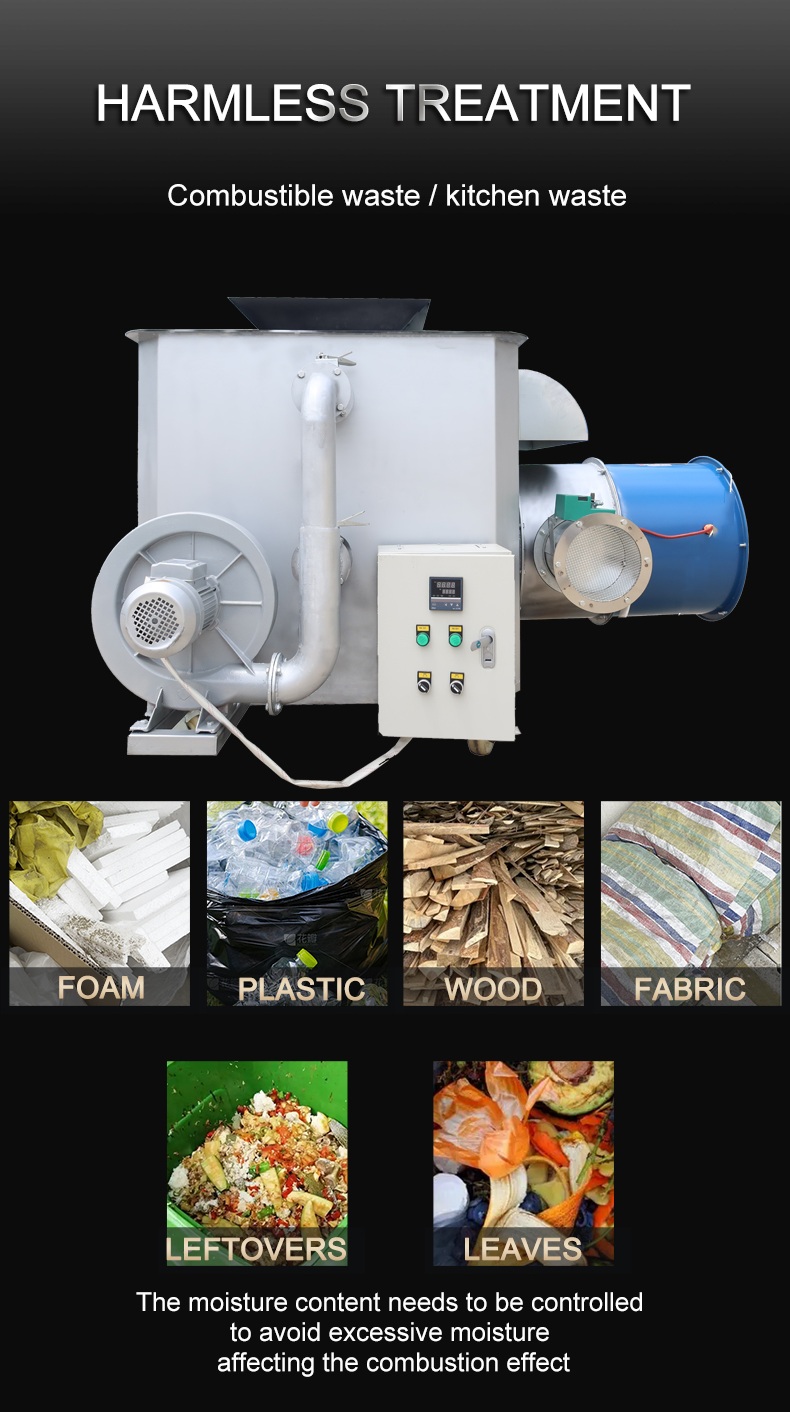

This environmentally friendly small-scale garbage incineration hot air/water heater is a new type of environmentally friendly equipment that integrates garbage incineration treatment and heat energy recovery. It is suitable for heating vegetable greenhouses, farms, workshops, small communities, small offices and small commercial institutions. The equipment uses efficient incineration technology to treat daily life garbage to achieve garbage reduction. At the same time, it uses an advanced heat exchange system to convert the heat energy generated by incineration into usable heat, such as hot water, hot air, etc., which is used for heating, bathing or other life and production purposes. It not only reduces garbage pollution to the environment, but also realizes the recycling of energy and reduces the cost of use. It has the advantages of environmental protection, energy saving, simple operation and compact structure.
Product functions and features
1. Efficient incineration and reduction: The unique furnace design and combustion system promote the full combustion of garbage, and the garbage reduction rate can reach 80%-90%, effectively solving the problem of garbage accumulation.

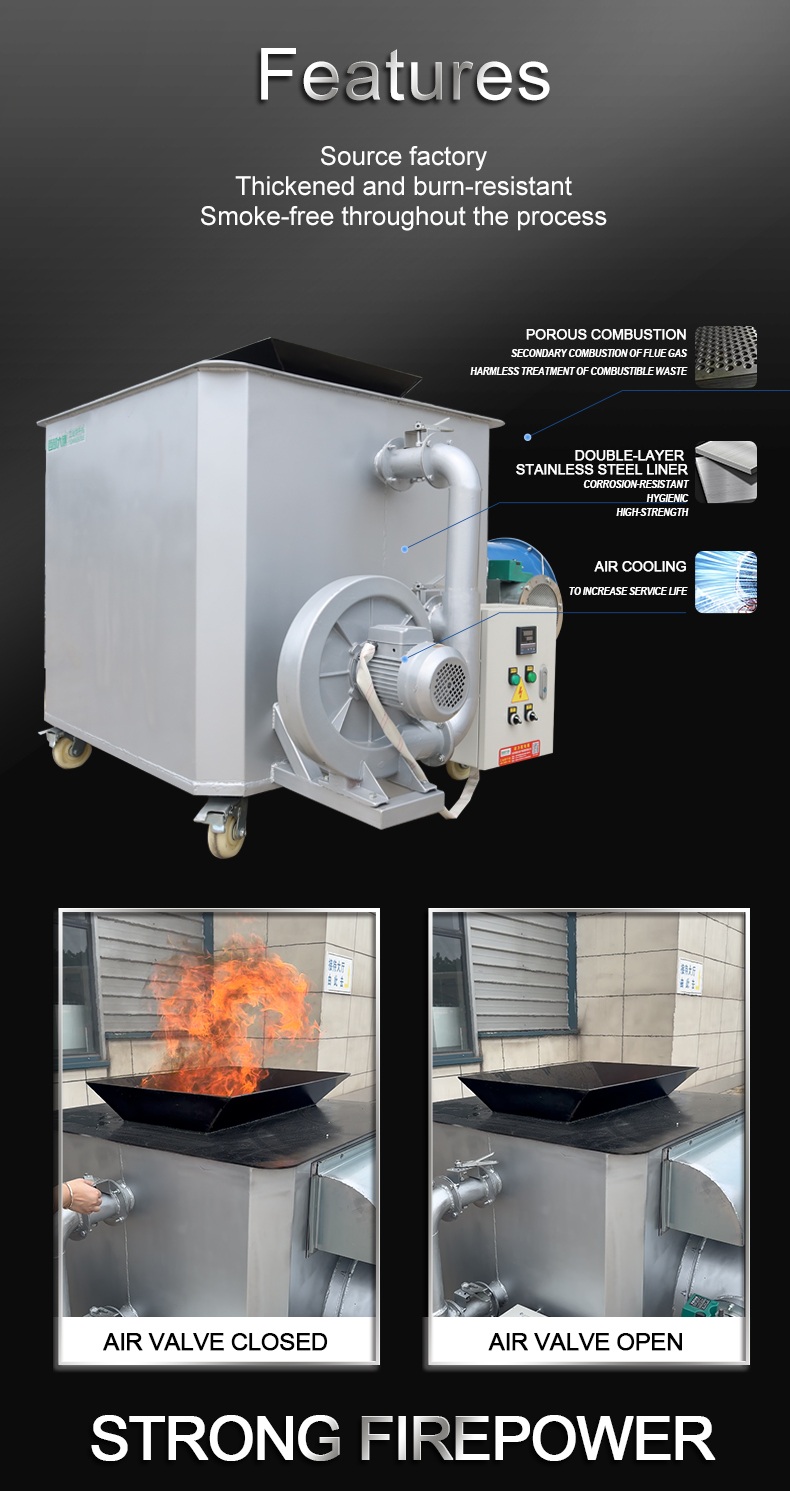

2. Environmental emission: The unique double-layer circulation pore design is adopted to carry out secondary combustion of flue gas, which can effectively reduce harmful substances such as dust, sulfur dioxide, nitrogen oxides and dioxins generated during the incineration process.
3. Heat recovery and utilization: The high-efficiency heat exchange system is adopted to fully recover the heat of high-temperature flue gas generated by incineration, which can be converted into hot water or hot air through the high-temperature fan. The heat conversion efficiency is as high as 70%, which can meet the user's various heat energy needs and realize the secondary utilization of energy.

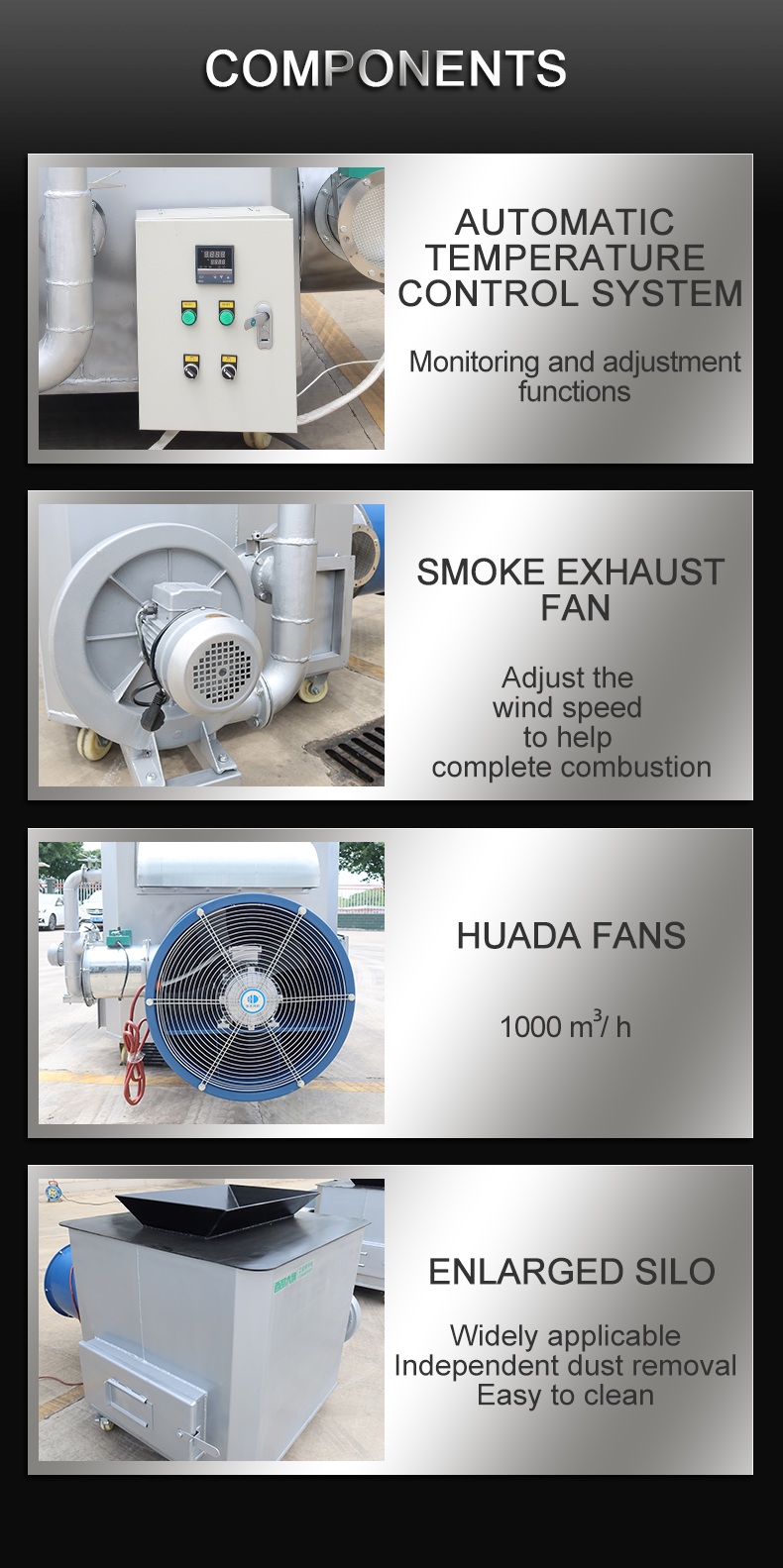

4. Intelligent control: Equipped with an automatic control system, it has functions such as temperature monitoring and regulation. Users can easily set parameters such as heat exchange temperature through the operation panel to ensure that the incineration and heat exchange process are stable, safe and efficient.
5. Energy saving and consumption reduction: The combination of high-efficiency insulation materials and optimized combustion and heat exchange technology reduces heat loss, improves energy utilization efficiency and reduces operating costs.
6. Compact structure: small size, small footprint, flexible installation, with universal wheels, no need for complex infrastructure projects, suitable for a variety of places.
