WesternFlag – Hanging-Type Drying Room (Biomass)| Starlight S Series
Product Overview
1. Drying Materials: Hanging materials such as sausages, cured meat, fruits and vegetables (illustrated with on-site photos of hanging drying)
2. Heat Source: Biomass
3. Core Features: Adopts top-to-bottom circulating hot air design for uniform heating; supports automatic temperature & humidity control and waste heat recovery to lower operating energy consumption
Advantages
1. Inner tank of the burner is made of high-temperature resistant stainless steel, durable
2. Automatic biomass burner is equipped with automatic ignition, shutdown, and temperature adjustment functions ensuring complete combustion. Thermal efficiency above 95%
3. Temperature rises rapidly and can reach 150℃ with a special fan.
4. Multiple rows of finned tubes for heat dissipation, heat conversion efficiency over 80%, providing clean and pollution-free hot air
Real photos

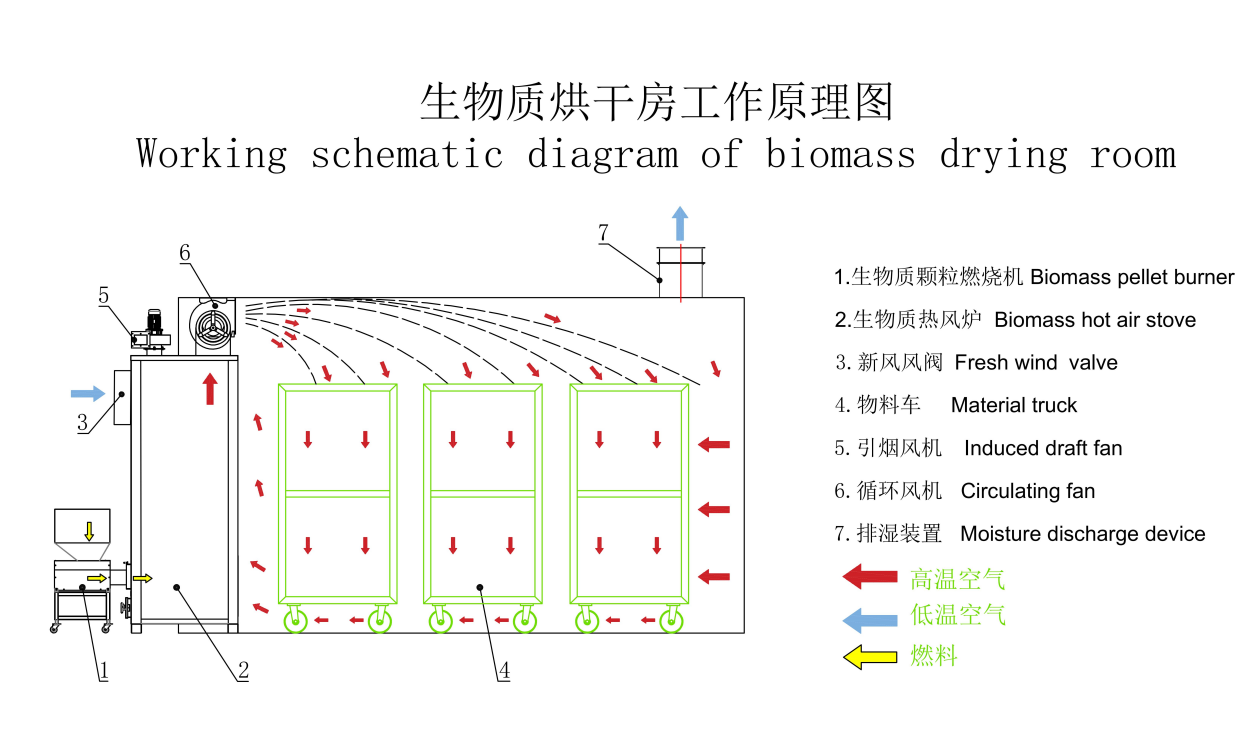

Working Schematic diagram
The XG series drying room adopts a top air outlet and bottom air inlet hot air circulation structure. The biomass pellet burner provides a stable heat source, and the generated hot air is evenly circulated through the drying chamber by the induced draft fan and circulating fan.
The hot air flows through the material truck from top to bottom, fully contacting the materials for efficient heat transfer and moisture removal. During the drying process, humid air is automatically discharged through the moisture discharge device, while fresh air is supplied through the fresh wind valve to maintain proper humidity conditions inside the drying chamber.
The intelligent control system realizes intelligent control of temperature, airflow, and moisture exhaust. The system ensures uniform and stable drying performance while improving energy efficiency and reducing operating costs.
XG Series Specification Sheet and Dimension Drawing
XG Series Drying Rooms are designed for drying various hanging-type materials and support multiple heat source options without limitations.
The series includes a range of standard models, while customized dimensions and configurations are also available to meet specific production requirements.
Below are the complete technical specifications and overall dimension drawings of the standard models, helping you select the suitable equipment and plan your workshop layout efficiently.
|
No. |
item |
Unit |
Model |
||||
|
1、 |
Name |
/ |
XG500 |
XG1000 |
XG1500 |
XG2000 |
XG3000 |
|
2、 |
Structure |
/ |
（Van type） |
||||
|
3、 |
Outer dimensions (L*W*H) |
mm |
2200×4200×2800mm |
3200×5200×2800 |
4300×6300×2800 |
5400×6300×2800 |
6500×7400×2800 |
|
4、 |
Fan power |
KW |
0.55*2+0.55 |
0.9*3+0.9 |
1.8*3+0.9*2 |
1.8*4+0.9*2 |
1.8*5+1.5*2 |
|
5、 |
Hot air temperature range |
℃ |
Atmosphere temperature~120 |
||||
|
6、 |
Loading capacity（Wet stuff） |
kg/ a batch |
500 |
1000 |
1500 |
2000 |
3000 |
|
7、 |
Effective drying volume |
m3 |
16 |
30 |
48 |
60 |
84 |
|
8、 |
Number of pushcarts |
sets |
4 |
9 |
16 |
20 |
30 |
|
9、 |
Hanging cart dimensions
(L*W*H) |
mm |
1200*900*1820mm |
||||
|
10、 |
Material of hanging cart |
/ |
（304 stainless steel） |
||||
|
11、 |
Hot air machine model |
/ |
5 |
10 |
20 |
20 |
30 |
|
12、 |
Outer dimension of Hot air machine |
mm |
|||||
|
13、 |
Fuel/medium |
/ |
Air energy heat pump, natural gas, steam, electricity, biomass pellet, coal, wood, hot water, thermal oil, methanol, gasoline and diesel | ||||
|
14、 |
Heat output of hot air machine |
Kcal/h |
5×104 |
10×104 |
20×104 |
20×104 |
30×104 |
|
15、 |
voltage |
/ |
380V 3N |
||||
|
16、 |
Temperature range |
℃ |
Atmosphere~120 |
||||
|
17、 |
Control system |
/ |
PLC+7（7 inch touch screen） |
||||
