WesternFlag – Hanging-Type Drying Room (Steam)| Starlight Z Series
Product Overview

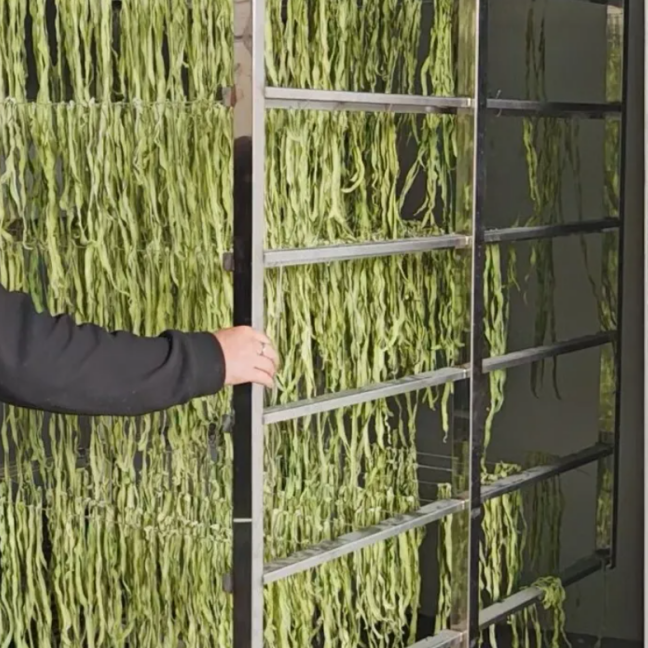

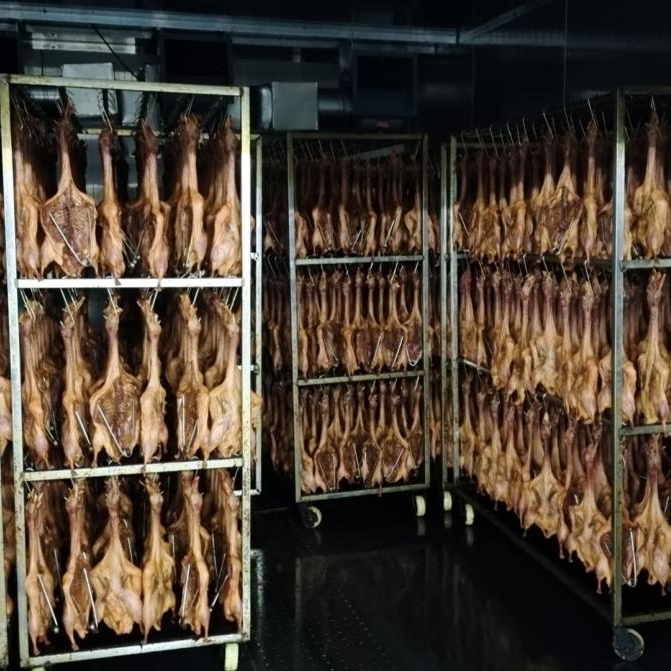

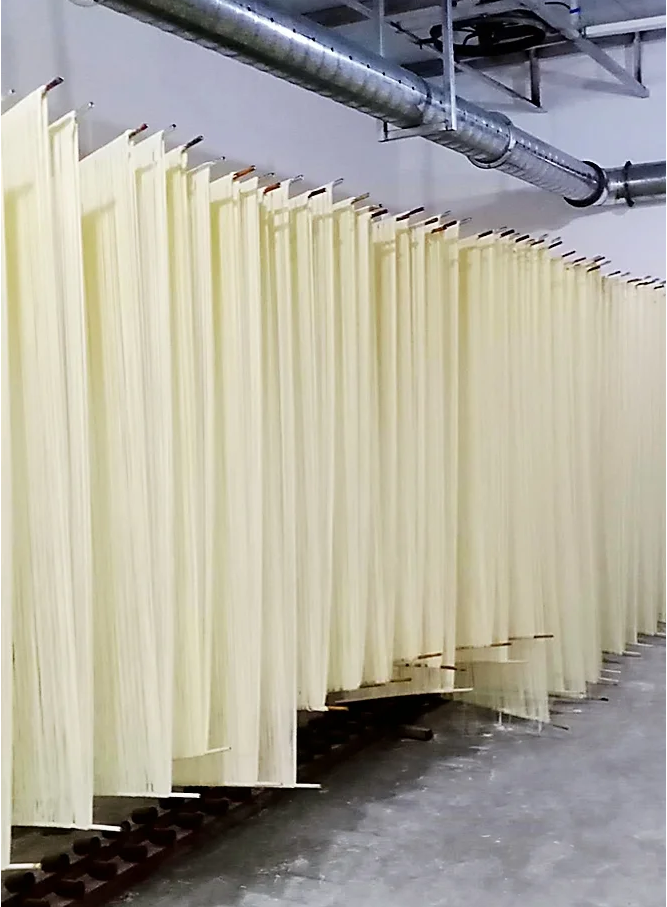

1. Drying Materials: Hanging materials such as sausages, cured meat, fruits and vegetables (illustrated with on-site photos of hanging drying)
2. Heat Source: Steam
3. Core Features: Adopts top-to-bottom circulating hot air design for uniform heating; supports automatic temperature & humidity control and waste heat recovery to lower operating energy consumption
Advantages
1. Utilizing rich steam source, heat transfer oil, or hot water, low energy consumption.
2. Solenoid valve controls the flow, automatically opening&closing, precise temperature control, and low air fluctuation.
3. Temperature rises rapidly and can reach 150℃ with a special fan. (steam pressure is more than 0.8 MPa)
4. Multiple rows of finned tubes for heat dissipation, seamless fluid tubes for the main tube with high pressure resistance; fins are made of aluminum or stainless steel, high efficiency heat.
5. Built in a hydrophilic aluminum foil dual waste heat recovery device, achieving energy savings and emissions reduction both over 20%.
Real photos
Working Schematic diagram

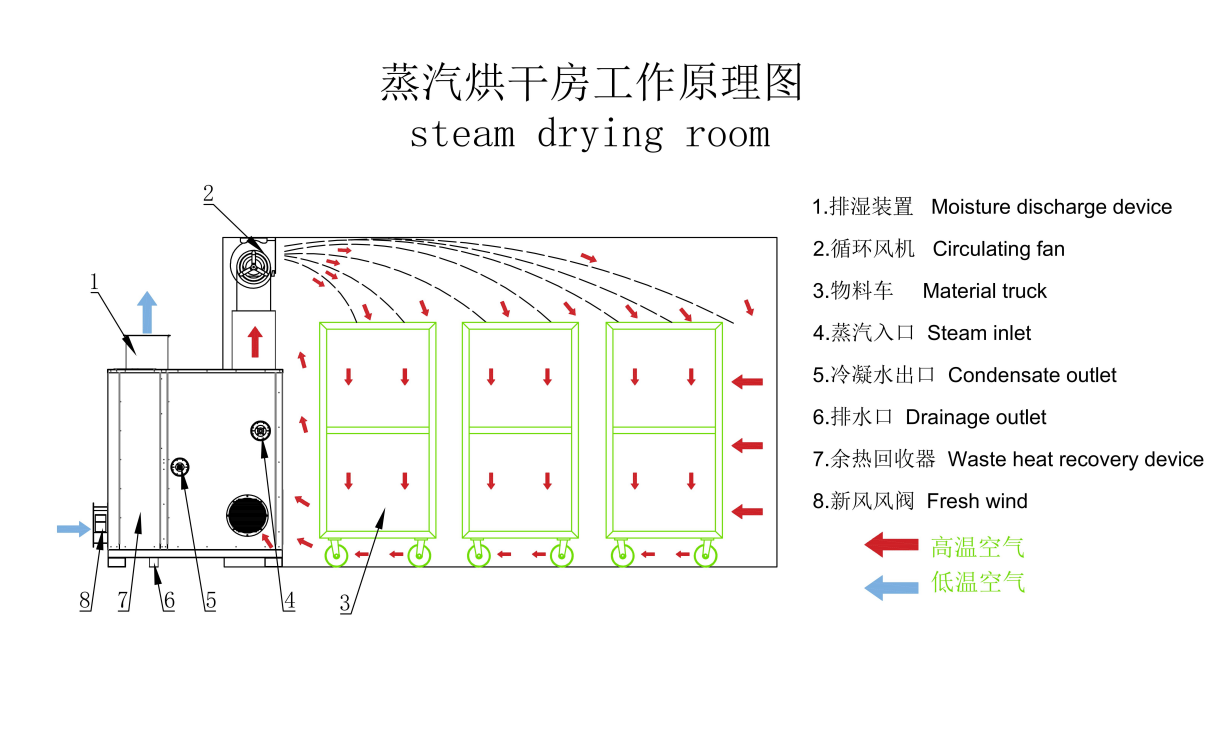

The XG series drying room adopts a top air outlet and bottom air inlet hot air circulation structure. Steam enters the heat exchanger through the steam inlet, transferring heat to circulating air to generate stable hot air for drying.
Driven by the circulating fan, heated air is delivered through the top air outlet and flows downward evenly through the material truck, providing efficient heat transfer and uniform moisture removal.
During the drying process, humid air is automatically discharged through the moisture discharge device, while condensate generated during heat exchange drains out via the condensate outlet. The waste heat recovery device improves energy utilization efficiency. The intelligent control system ensures stable drying performance, consistent product quality, and reduced energy consumption.
XG Series Specification Sheet and Dimension Drawing
XG Series Drying Rooms are designed for drying various hanging-type materials and support multiple heat source options without limitations.
The series includes a range of standard models, while customized dimensions and configurations are also available to meet specific production requirements.
Below are the complete technical specifications and overall dimension drawings of the standard models, helping you select the suitable equipment and plan your workshop layout efficiently.
|
No. |
item |
Unit |
Model |
||||
|
1、 |
Name |
/ |
XG500 |
XG1000 |
XG1500 |
XG2000 |
XG3000 |
|
2、 |
Structure |
/ |
（Van type） |
||||
|
3、 |
Outer dimensions (L*W*H) |
mm |
2200×4200×2800mm |
3200×5200×2800 |
4300×6300×2800 |
5400×6300×2800 |
6500×7400×2800 |
|
4、 |
Fan power |
KW |
0.55*2+0.55 |
0.9*3+0.9 |
1.8*3+0.9*2 |
1.8*4+0.9*2 |
1.8*5+1.5*2 |
|
5、 |
Hot air temperature range |
℃ |
Atmosphere temperature~120 |
||||
|
6、 |
Loading capacity（Wet stuff） |
kg/ a batch |
500 |
1000 |
1500 |
2000 |
3000 |
|
7、 |
Effective drying volume |
m3 |
16 |
30 |
48 |
60 |
84 |
|
8、 |
Number of pushcarts |
sets |
4 |
9 |
16 |
20 |
30 |
|
9、 |
Hanging cart dimensions
(L*W*H) |
mm |
1200*900*1820mm |
||||
|
10、 |
Material of hanging cart |
/ |
（304 stainless steel） |
||||
|
11、 |
Hot air machine model |
/ |
5 |
10 |
20 |
20 |
30 |
|
12、 |
Outer dimension of Hot air machine |
mm |
|||||
|
13、 |
Fuel/medium |
/ |
Air energy heat pump, natural gas, steam, electricity, biomass pellet, coal, wood, hot water, thermal oil, methanol, gasoline and diesel | ||||
|
14、 |
Heat output of hot air machine |
Kcal/h |
5×104 |
10×104 |
20×104 |
20×104 |
30×104 |
|
15、 |
voltage |
/ |
380V 3N |
||||
|
16、 |
Temperature range |
℃ |
Atmosphere~120 |
||||
|
17、 |
Control system |
/ |
PLC+7（7 inch touch screen） |
||||
