WesternFlag – Hanging-Type Drying Room (Electric)| Starlight D Series
Product Overview
1. Drying Materials: Hanging materials such as sausages, cured meat, fruits and vegetables (illustrated with on-site photos of hanging drying)
2. Heat Source: Electric
3. Core Features: Adopts top-to-bottom circulating hot air design for uniform heating; supports automatic temperature & humidity control and waste heat recovery to lower operating energy consumption
Advantages
1. Low cost, environmentally friendly with no carbon emissions.
2. Group start and stop, low load, precise temperature control, low air fluctuations.

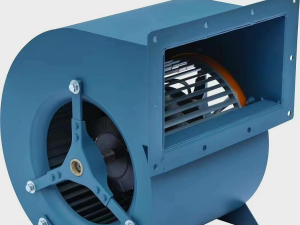

3. Temperature rises rapidly and can reach 200'C with a special fan.
4. Stainless steel electric heating finned tube, durable.Built in a hydrophilic aluminum foil dual waste heat recovery device, achieving energy savingsand emissions reduction both over 20%.
Real photos
Working Schematic diagram
The XG series drying room adopts a top air outlet and bottom air inlet hot air circulation structure. The electric heater provides a stable heat source, and the generated hot air is evenly circulated throughout the drying chamber under the action of the circulating fan.
The hot air enters from the top air outlet and flows downward through the material truck, ensuring sufficient heat exchange and uniform moisture removal. After passing through the materials, the air returns through the lower circulation channel to form an efficient closed-loop drying process.
During operation, the moisture discharge device automatically removes humid air, while the fresh wind valve regulates air exchange. The waste heat recovery device recovers residual heat to improve energy utilization efficiency. The intelligent control system guarantees uniform drying quality, stable operation, and reduced energy consumption.
XG Series Specification Sheet and Dimension Drawing
XG Series Drying Rooms are designed for drying various hanging-type materials and support multiple heat source options without limitations.
The series includes a range of standard models, while customized dimensions and configurations are also available to meet specific production requirements.
Below are the complete technical specifications and overall dimension drawings of the standard models, helping you select the suitable equipment and plan your workshop layout efficiently.
|
No. |
item |
Unit |
Model |
||||
|
1、 |
Name |
/ |
XG500 |
XG1000 |
XG1500 |
XG2000 |
XG3000 |
|
2、 |
Structure |
/ |
（Van type） |
||||
|
3、 |
Outer dimensions (L*W*H) |
mm |
2200×4200×2800mm |
3200×5200×2800 |
4300×6300×2800 |
5400×6300×2800 |
6500×7400×2800 |
|
4、 |
Fan power |
KW |
0.55*2+0.55 |
0.9*3+0.9 |
1.8*3+0.9*2 |
1.8*4+0.9*2 |
1.8*5+1.5*2 |
|
5、 |
Hot air temperature range |
℃ |
Atmosphere temperature~120 |
||||
|
6、 |
Loading capacity（Wet stuff） |
kg/ a batch |
500 |
1000 |
1500 |
2000 |
3000 |
|
7、 |
Effective drying volume |
m3 |
16 |
30 |
48 |
60 |
84 |
|
8、 |
Number of pushcarts |
sets |
4 |
9 |
16 |
20 |
30 |
|
9、 |
Hanging cart dimensions
(L*W*H) |
mm |
1200*900*1820mm |
||||
|
10、 |
Material of hanging cart |
/ |
（304 stainless steel） |
||||
|
11、 |
Hot air machine model |
/ |
5 |
10 |
20 |
20 |
30 |
|
12、 |
Outer dimension of Hot air machine |
mm |
|||||
|
13、 |
Fuel/medium |
/ |
Air energy heat pump, natural gas, steam, electricity, biomass pellet, coal, wood, hot water, thermal oil, methanol, gasoline and diesel | ||||
|
14、 |
Heat output of hot air machine |
Kcal/h |
5×104 |
10×104 |
20×104 |
20×104 |
30×104 |
|
15、 |
voltage |
/ |
380V 3N |
||||
|
16、 |
Temperature range |
℃ |
Atmosphere~120 |
||||
|
17、 |
Control system |
/ |
PLC+7（7 inch touch screen） |
||||
