WesternFlag – Different Size Movable Integrated Drying Room

Short Description:

Heat sources: Electric

Usage: To dry bacon, fish, sausage and fruit...

Circulation mode: Alternate periodic cycle up and down

Material: Steel, SS201, SS304 optional

Temperature range: Atmosphere-100

heating power: 24KW-36KW

Loading method: Tray/hanging

Effective drying area: 43.2㎡-57.6㎡

Tray size (L*W): 800mmX1000mm

Service: OEM, ODM, Private Label

MOQ: 1

Send email to us Inquiry WhatsApp

Product Detail

Product Tags

Product overview

1. Drying Materials: tray loading & hanging loading

2. Heat Source: Electric

3. Core Features: PLC periodic up-down air circulation, efficient moisture exhaust, uniform drying on all layers

https://www.dryequipmfr.com/the-red-fire-t-series-natural-gas-drying-room-product/

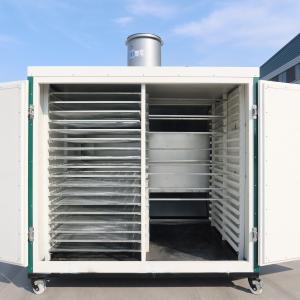

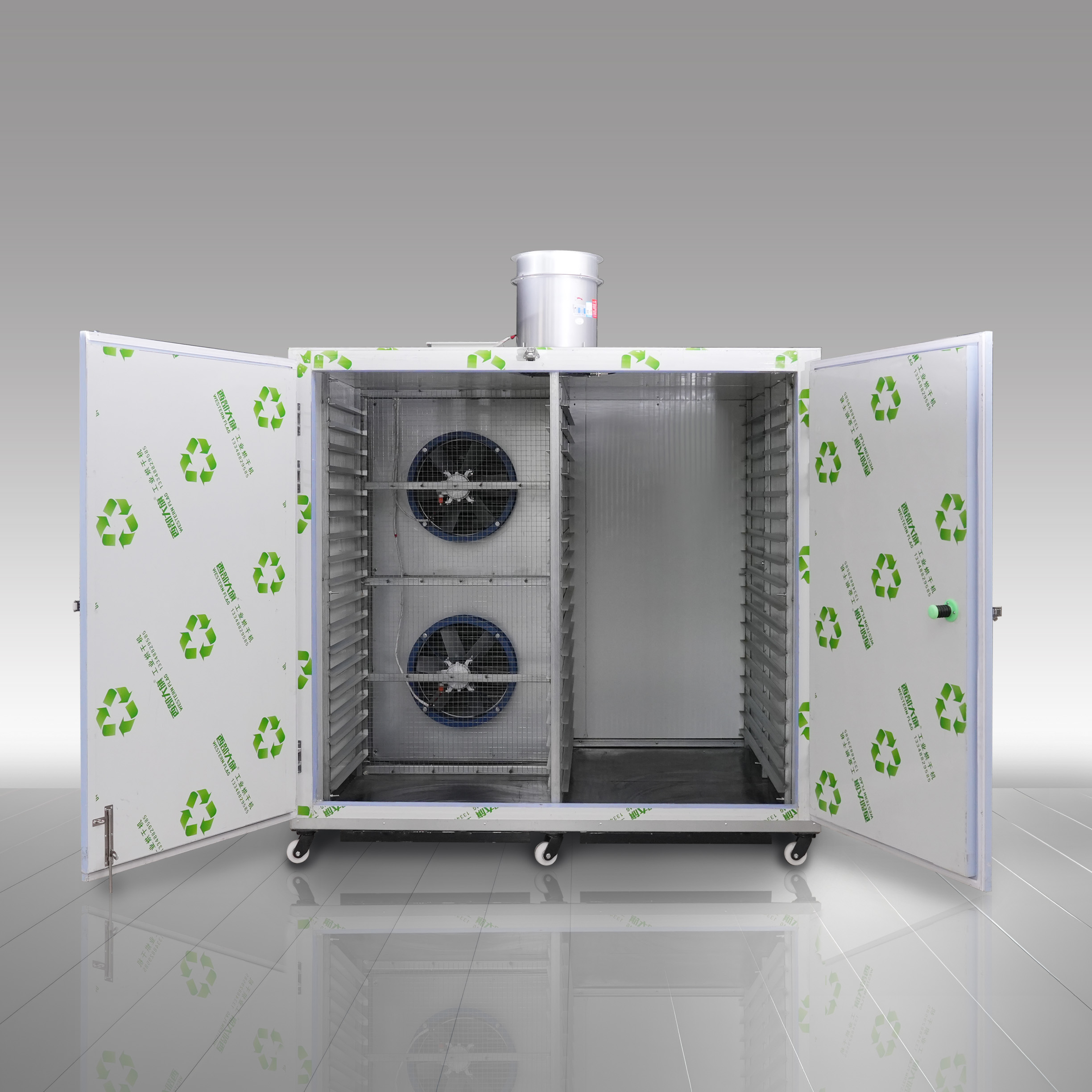

Real photos

Working Schematic diagram

This schematic displays three mainstream specifications: 54-tray electric heating oven, 72-tray electric heating oven and 108-tray biomass particle drying oven.

All designs apply alternating periodic vertical hot air circulation. Electric models rely on electric heaters, while the biomass version uses biomass fuel for heating.

Hot air circulates fully inside the chamber, moisture is expelled through the moisture discharge device, ensuring uniform drying across all layers of products.

Specification sheet

No.	Item	Unit	Model
1、	Model	/	HXD-54	HXD-72
2、	Outer dimensions (LWH)	mm	2000x2300x2100	3000x2300x2100
3、	Loading method		Tray/hanging
4、	Number of trays	pcs	54	72
5、	Tray size (L*W)	mm	800X1000
6、	Effective drying area	㎡	43.2	57.6
7、	Design loading capacity	Kg/ Batch	400	600
8、	Temperature	℃	Atmosphere-100
9、	Total installed power	Kw	26	38
10、	heating power	Kw	24	36
11、	Amount of heat	Kcal/h	20640	30960
12、	circular mode	/	Alternate periodic cycle up and down
13、	Moisture discharge	Kg/h	≤24	≤36
14、	circulating flow	m³/h	12000	16000
15、	Materials		Insulation layer: A1 high-density rock wool purification board. Bracket and sheet metal: Q235, 201, 304 Spraying process: baking paint
16、	Noise	dB（A）	65
17、	Control form		PLC programmable automatic control program +7-inch LCD touch screen
18、	Protection grades		IPX4； Class 1 electric shock protection
19、	Suitable stuff		Meat, vegetables, fruits and medicinal materials.
