WesternFlag – Hanging-Type Drying Room (Air Energy)| Starlight K Series
Product Overview
1. Drying Materials: Hanging materials such as sausages, cured meat, fruits and vegetables (illustrated with on-site photos of hanging drying)
2. Heat Source: Air Energy
3. Core Features: Adopts top-to-bottom circulating hot air design for uniform heating; supports automatic temperature & humidity control and waste heat recovery to lower operating energy consumption
Advantages
1. High thermal efficiency, heat transfer is achieved by driving the compressor to transfer heat, one unit of electricity can be used as three units of electricity.
2. Operating temperature ranges from atmosphere temperature to 75℃.
3. Environmentally friendly with no carbon emissions.
4. Sufficient electric auxiliary heating, can quickly heat up.
5. Built in a hydrophilic aluminum foil dual waste heat recovery device, achieving energy savings and emissions reduction both over 20%

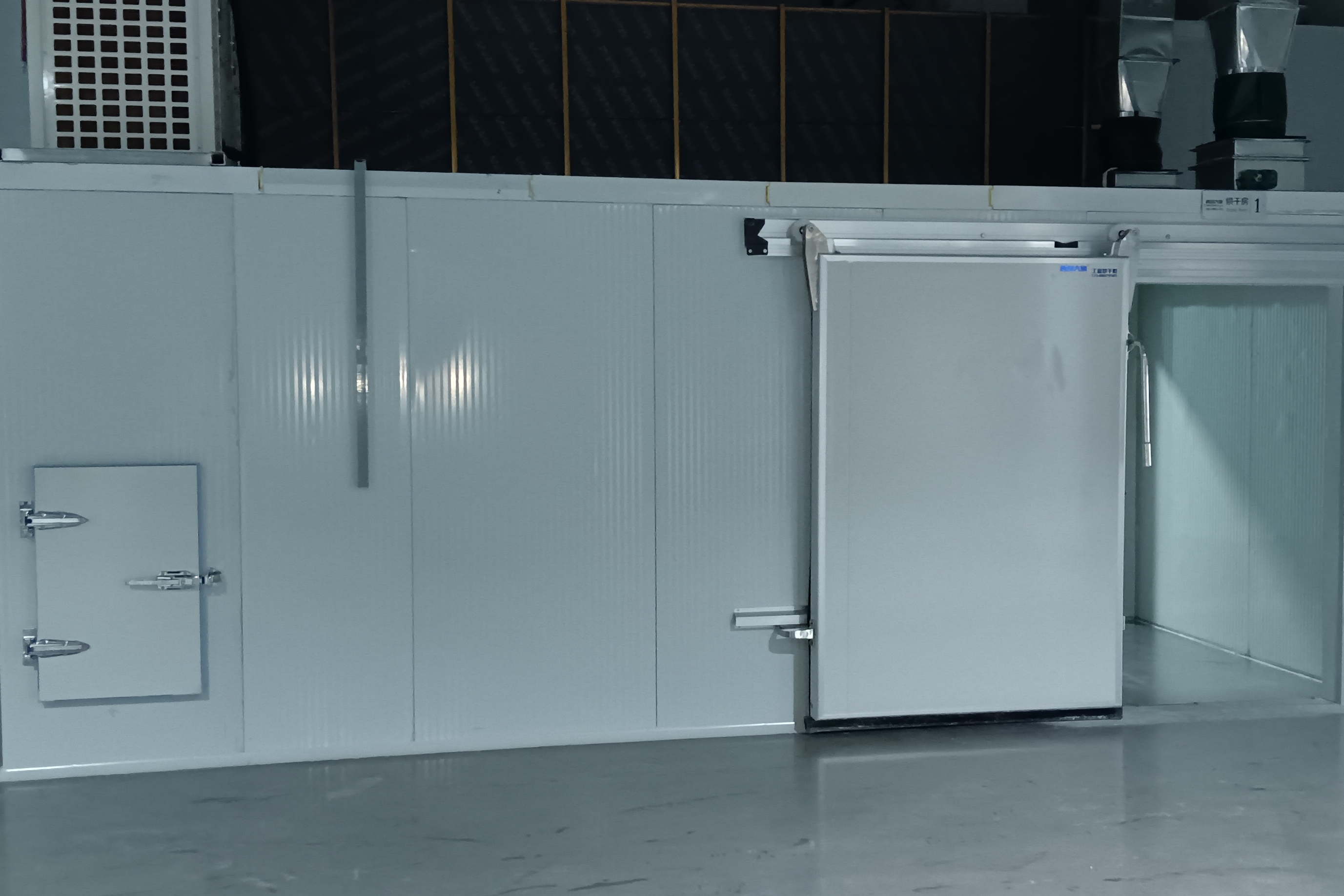

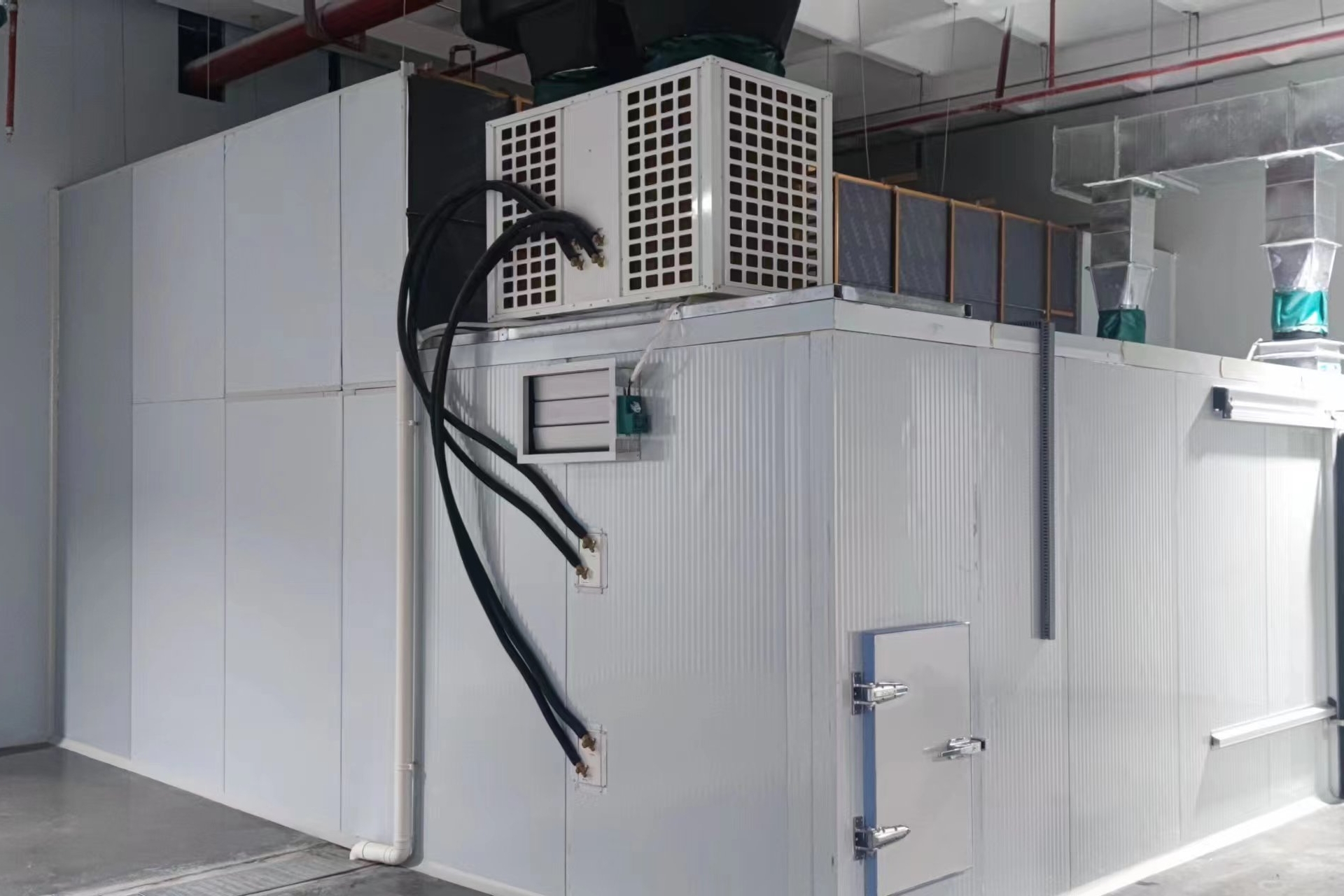

Real photos

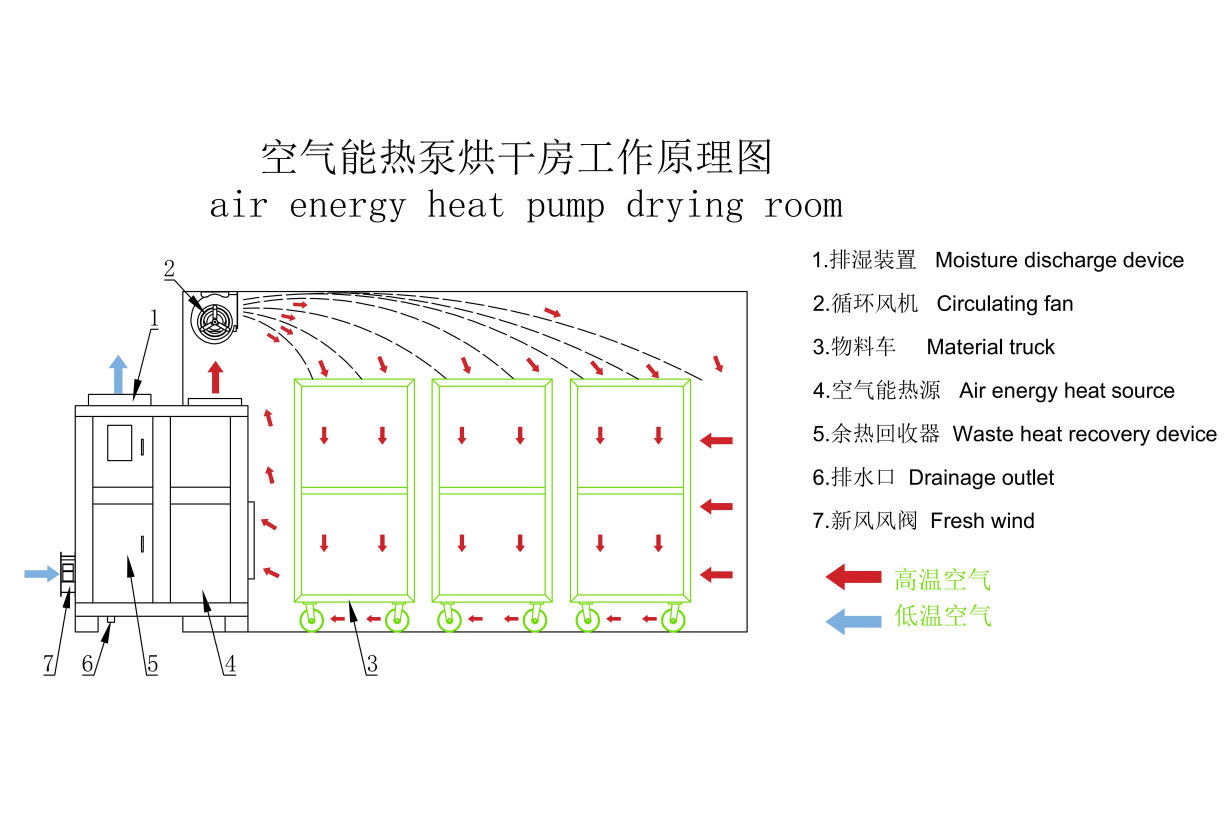

Working Schematic diagram
The XG series drying room adopts a top air outlet and bottom air inlet hot air circulation structure. The air energy heat source provides stable hot air, which is delivered from the top air outlet and evenly passes downward through the material truck under the action of the circulating fan, achieving uniform heating and moisture removal from the materials.
During the drying process, humid air is partially discharged through the moisture discharge device, while residual heat is recovered by the waste heat recovery device to preheat fresh air, raising energy utilization efficiency. The intelligent control system automatically adjusts moisture discharge, fresh air supply, temperature and humidity to maintain a stable drying environment, guaranteeing consistent drying quality and greatly cutting energy consumption.
XG Series Specification Sheet and Dimension Drawing
XG Series Drying Rooms are designed for drying various hanging-type materials and support multiple heat source options without limitations.
The series includes a range of standard models, while customized dimensions and configurations are also available to meet specific production requirements.
Below are the complete technical specifications and overall dimension drawings of the standard models, helping you select the suitable equipment and plan your workshop layout efficiently.
|
No. |
item |
Unit |
Model |
||||
|
1、 |
Name |
/ |
XG500 |
XG1000 |
XG1500 |
XG2000 |
XG3000 |
|
2、 |
Structure |
/ |
（Van type） |
||||
|
3、 |
Outer dimensions (L*W*H) |
mm |
2200×4200×2800mm |
3200×5200×2800 |
4300×6300×2800 |
5400×6300×2800 |
6500×7400×2800 |
|
4、 |
Fan power |
KW |
0.55*2+0.55 |
0.9*3+0.9 |
1.8*3+0.9*2 |
1.8*4+0.9*2 |
1.8*5+1.5*2 |
|
5、 |
Hot air temperature range |
℃ |
Atmosphere temperature~120 |
||||
|
6、 |
Loading capacity（Wet stuff） |
kg/ a batch |
500 |
1000 |
1500 |
2000 |
3000 |
|
7、 |
Effective drying volume |
m3 |
16 |
30 |
48 |
60 |
84 |
|
8、 |
Number of pushcarts |
sets |
4 |
9 |
16 |
20 |
30 |
|
9、 |
Hanging cart dimensions
(L*W*H) |
mm |
1200*900*1820mm |
||||
|
10、 |
Material of hanging cart |
/ |
（304 stainless steel） |
||||
|
11、 |
Hot air machine model |
/ |
5 |
10 |
20 |
20 |
30 |
|
12、 |
Outer dimension of Hot air machine |
mm |
|||||
|
13、 |
Fuel/medium |
/ |
Air energy heat pump, natural gas, steam, electricity, biomass pellet, coal, wood, hot water, thermal oil, methanol, gasoline and diesel | ||||
|
14、 |
Heat output of hot air machine |
Kcal/h |
5×104 |
10×104 |
20×104 |
20×104 |
30×104 |
|
15、 |
voltage |
/ |
380V 3N |
||||
|
16、 |
Temperature range |
℃ |
Atmosphere~120 |
||||
|
17、 |
Control system |
/ |
PLC+7（7 inch touch screen） |
||||
