WesternFlag – DL1 Electric Heater (Bottom air outlet & top air inlet)

Short Description:

Heat sources: Electrical

Usage: To heating dryers, boilers, greenhouse, oil well, etc.

Circulation mode: From bottom to heating

Service: OEM, ODM, Private Label

MOQ: 1

Material: Steel, SS201, SS304 optional

Temperature range: Atmospheric temperature-200℃, customized

Air volume: 4000-20000m³/h, customized

Power: 50-150KW, 220-380V, 3N

Send email to us Inquiry WhatsApp

Product Detail

Product Tags

Product Overview

Heat source :Electric

Airflow direction: Bottom Outlet & Top Inlet

Matching Drying Room : Drying Beds

Features: Simple structure, easy installation ｜ Direct bottom-up heating, fast temperature rise ｜ Cost-effective solution ｜ Straight parallel airflow for stable heating

https://www.dryequipmfr.com/the-red-fire-t-series-natural-gas-drying-room-product/

Advantages

1. Uncomplicated design, attractive appearance, economical2. Resilient stainless steel electric heating finned tube
2. Automated start and stop, accurate temperature regulation, energy-efficient, low load
3. Generous air volume and minimal wind temperature variation
4. Heat-resistant rock wool insulation box of high density to prevent heat loss
5. Fan resisting high temperature and humidity with IP54 safeguard rating and H-class insulation rating.

Real Photos

Dl-1-Model-Electric-Air-Heater-With-Upper-Inlet-And-Lower-Outlet6

Dl-1-Model-Electric-Air-Heater-With-Upper-Inlet-And-Lower-Outlet5

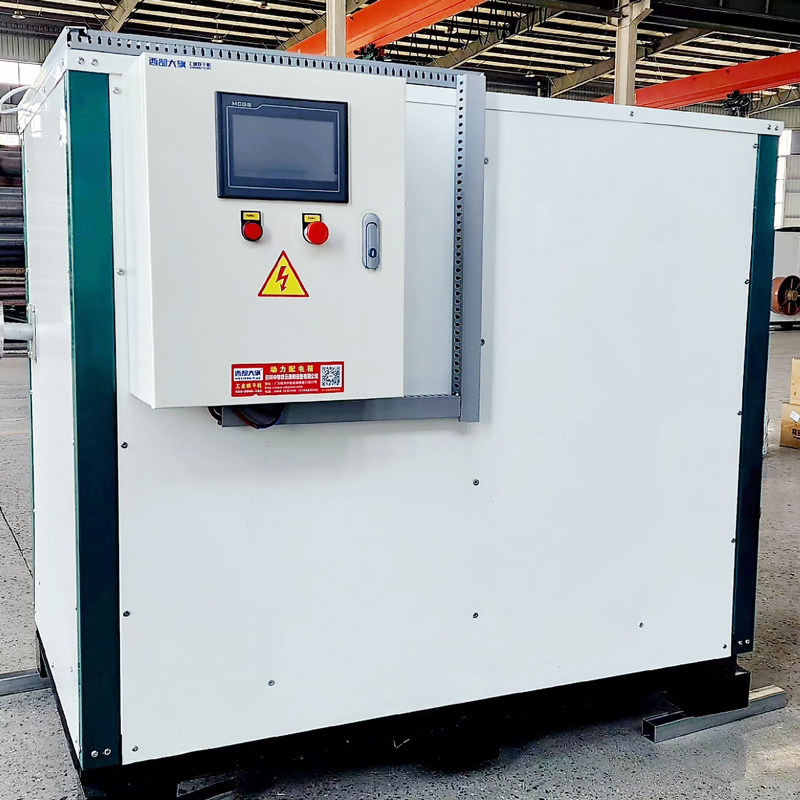

Dl-1-Model-Electric-Air-Heater-With-Upper-Inlet-And-Lower-Outlet3

Dl-1-Model-Electric-Air-Heater-With-Upper-Inlet-And-Lower-Outlet2

Working Schematic Diagram

1. DL1 Series electric hot blast furnace consists of fan, return air grille, electric air valve and electric heater.

2. Low-temperature air enters the furnace through the electric air valve and is heated by the electric heater.

3. The fan circulates and conveys generated high-temperature air to drying equipment.

4. Partial hot air flows back into the furnace via the return air grille for cyclic utilization to lift thermal efficiency.

5. The electric air valve realizes accurate air volume regulation and stable temperature control.

6. It provides clean hot air with zero waste emission, suitable for industrial drying requiring high cleanliness.

Specifications

Model DL1
(Upper Inlet and Lower outlet)

Output heat
(×104Kcal/h)

Output temperature
(℃)

Output air volume
(m³/h)

Weight
(KG)

Dimension
(mm)

Power
(KW)

Material

Heat exchange mode

Energy

Voltage

Electrothermal power

Parts

Applications

DL1-5
Steam direct electric heater

Normal temperature -100

4000--20000

280

770*1300*1330

48+1.6

1.Stainless steel electric heating finned tube2.High-density fire-resistant rock wool for box3.Sheet metal parts are sprayed with plastic; remaining carbon steel4.Can be customized by your requirements

Heating by electric heating tube

Electricity

380V

1. 3 groups of electric heaters2. 1-2 pcs induced draft fans3. 1 pcs furnace body4. 1 pcs electric control box

1. Supporting drying room, dryer and drying bed.2, Vegetables, flowers and other planting greenhouses3, Chickens, ducks, pigs, cows and other brooding rooms4, workshop, shopping mall, mine heating5. Plastic spraying, sand blasting and spray booth6. Rapid hardening of concrete pavement7. And more

DL1-10
Steam direct electric heater

390

1000*1300*1530

96+3.1

DL1-20
Steam direct electric heater

450

1200*1300*1530

192+4.5

192

30, 40, 50, 100 and above can be customized.
