WesternFlag – TL3 Natural Gas Furnace (Top air outlet & bottom air inlet)
Product Overview
Heat source : Natural Gas
Airflow direction: Top Outlet & Bottom Inlet
Matching Drying Room : XG Series Hanging Type Drying Rooms
Features : Equipped with dehumidifying fan, fresh air damper & waste heat recovery ｜ High energy efficiency｜ Precise temperature & humidity control
Advantages
1. Uncomplicated configuration and effortless setup.
2. Substantial air capacity and slight air temperature variation.
3. Resilient stainless steel high-temp-resistant inner reservoir.
4. Self-acting gas burner, full combustion, high productivity (Upon installation, the system can independently control ignition+shutdown+automatic temperature adjustment).
5. Dense fire-resistant rock wool protective casing to prevent heat loss.
6. Fan resistant to high temperatures and humidity, with an IP54 protection rating and H-class insulation rating.
7. Alternating operation of fans on the left and right in recurring cycles to ensure uniform heating.
8. Automatic supply of fresh air.
9. Applications：
- Vegetable, flower, and other planting greenhouses
- Poultry and livestock breeding warm houses (chicks, ducks, pigs, cattle, etc.)
- Heating for workshops, shopping malls, and mining sites
- Powder coating, sandblasting, and paint baking rooms

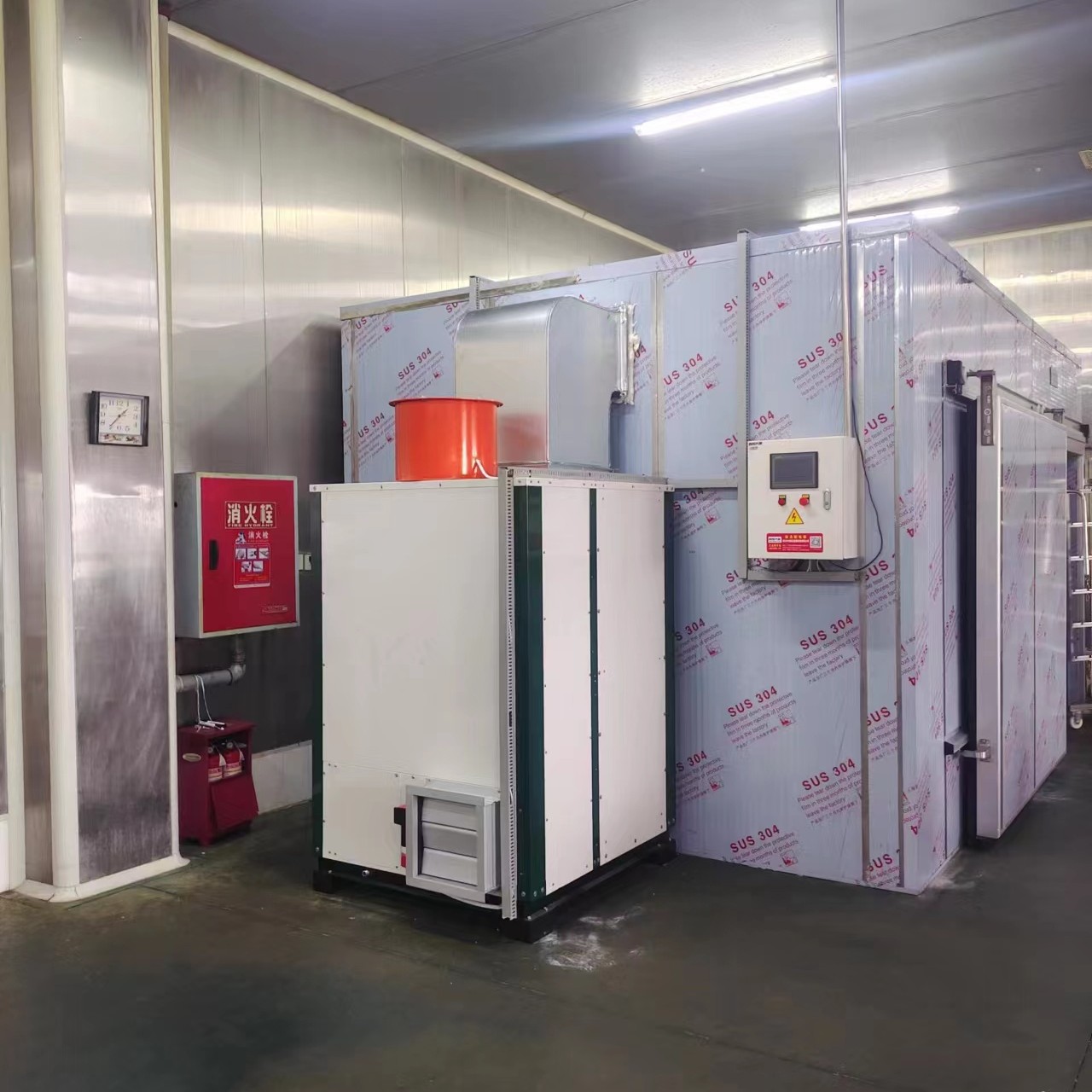

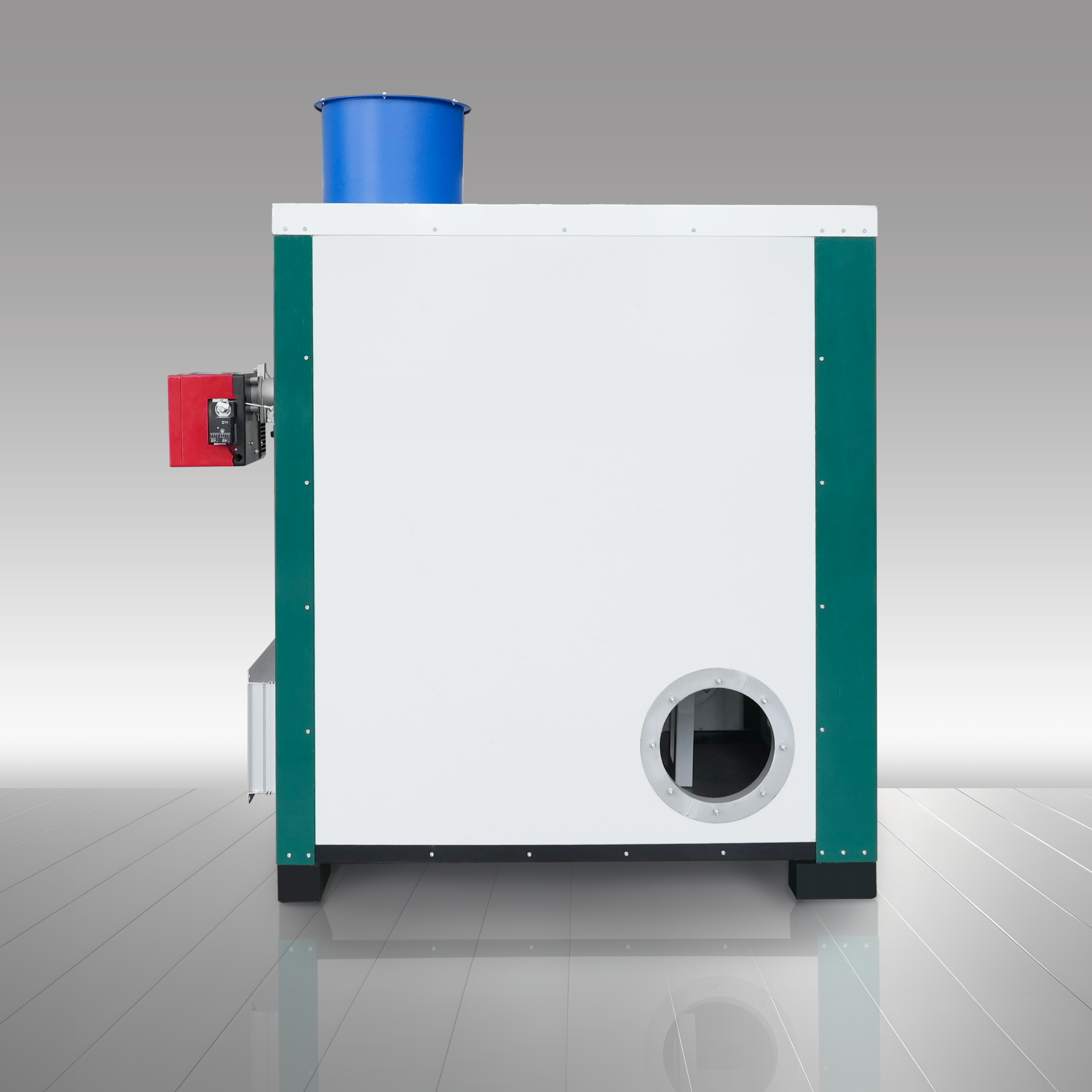

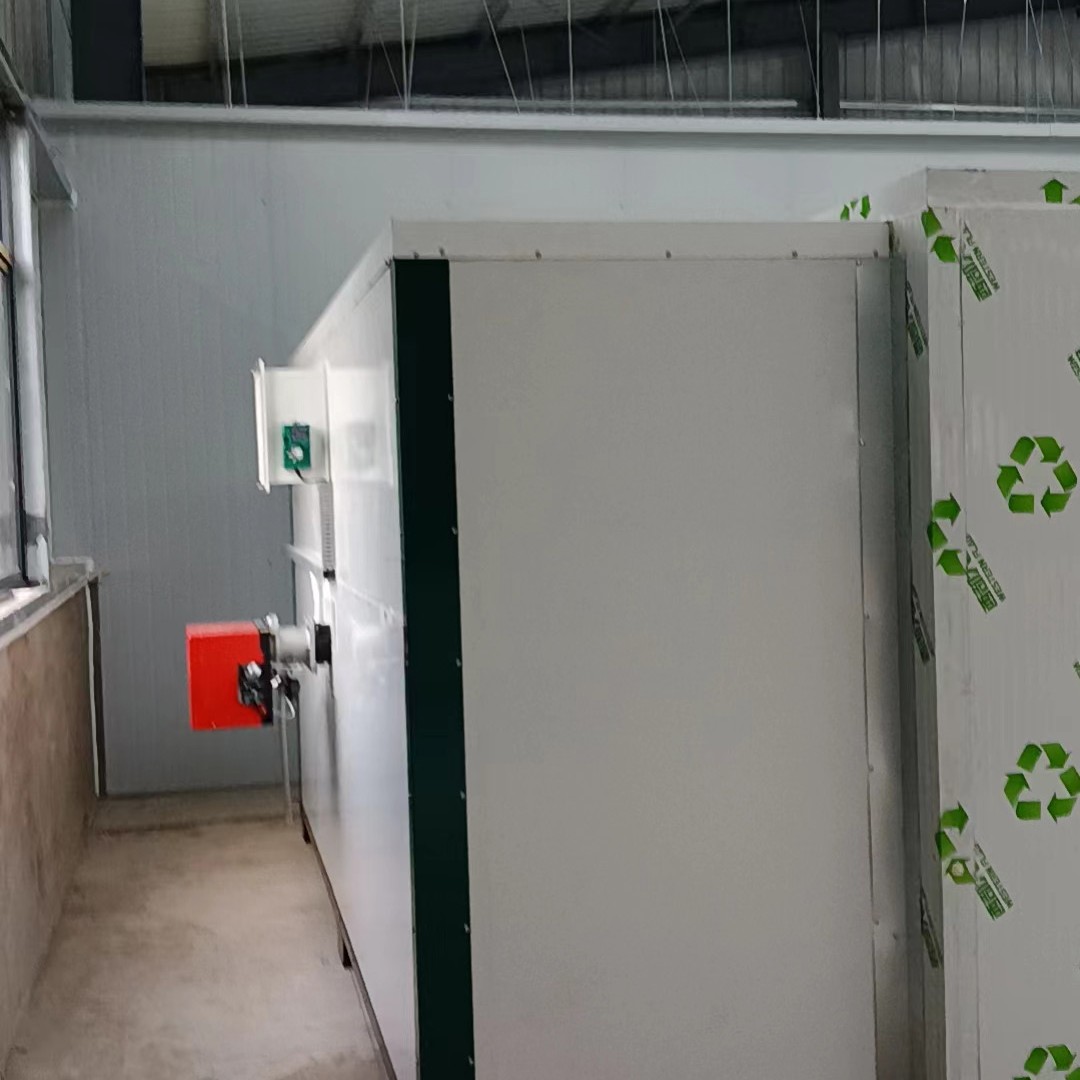

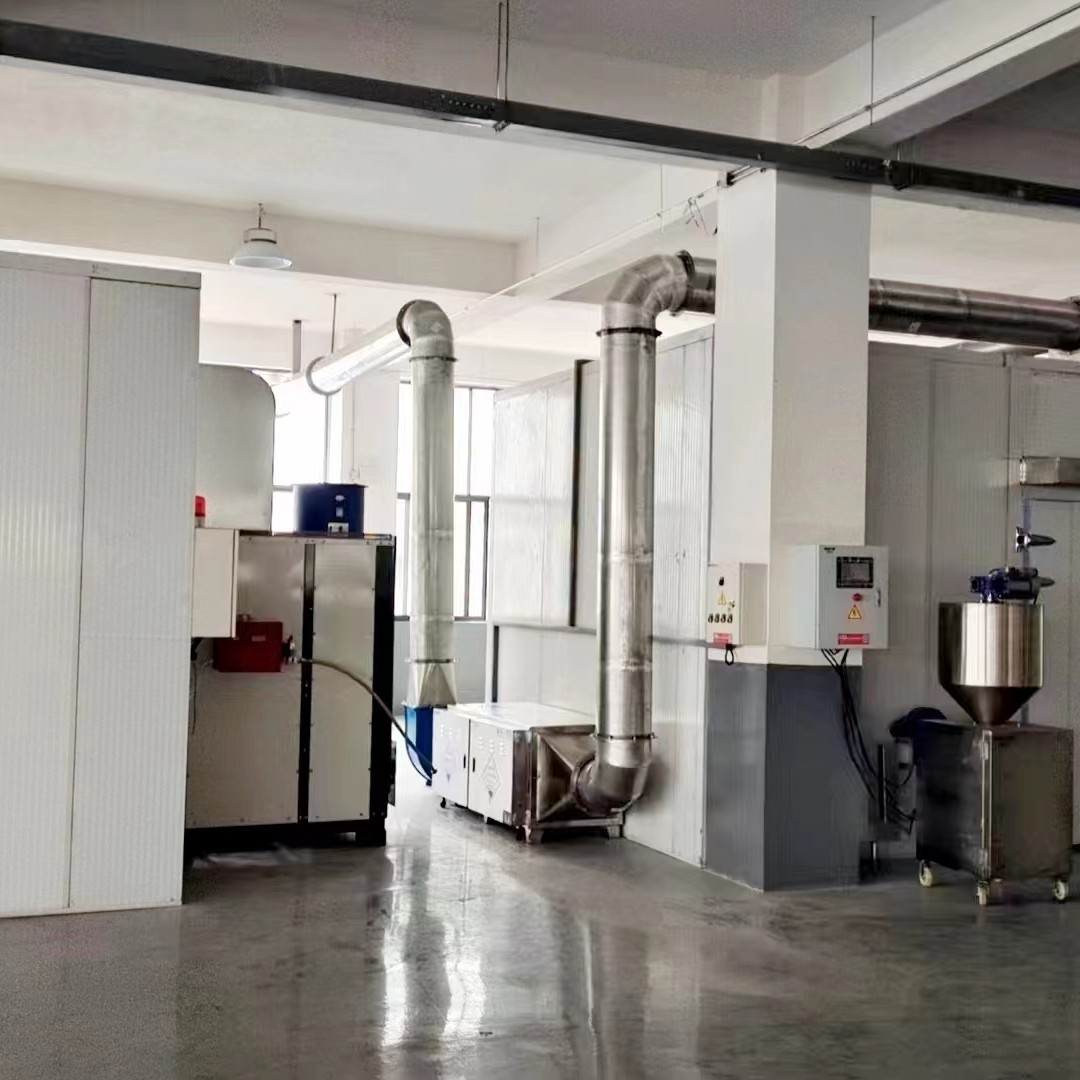

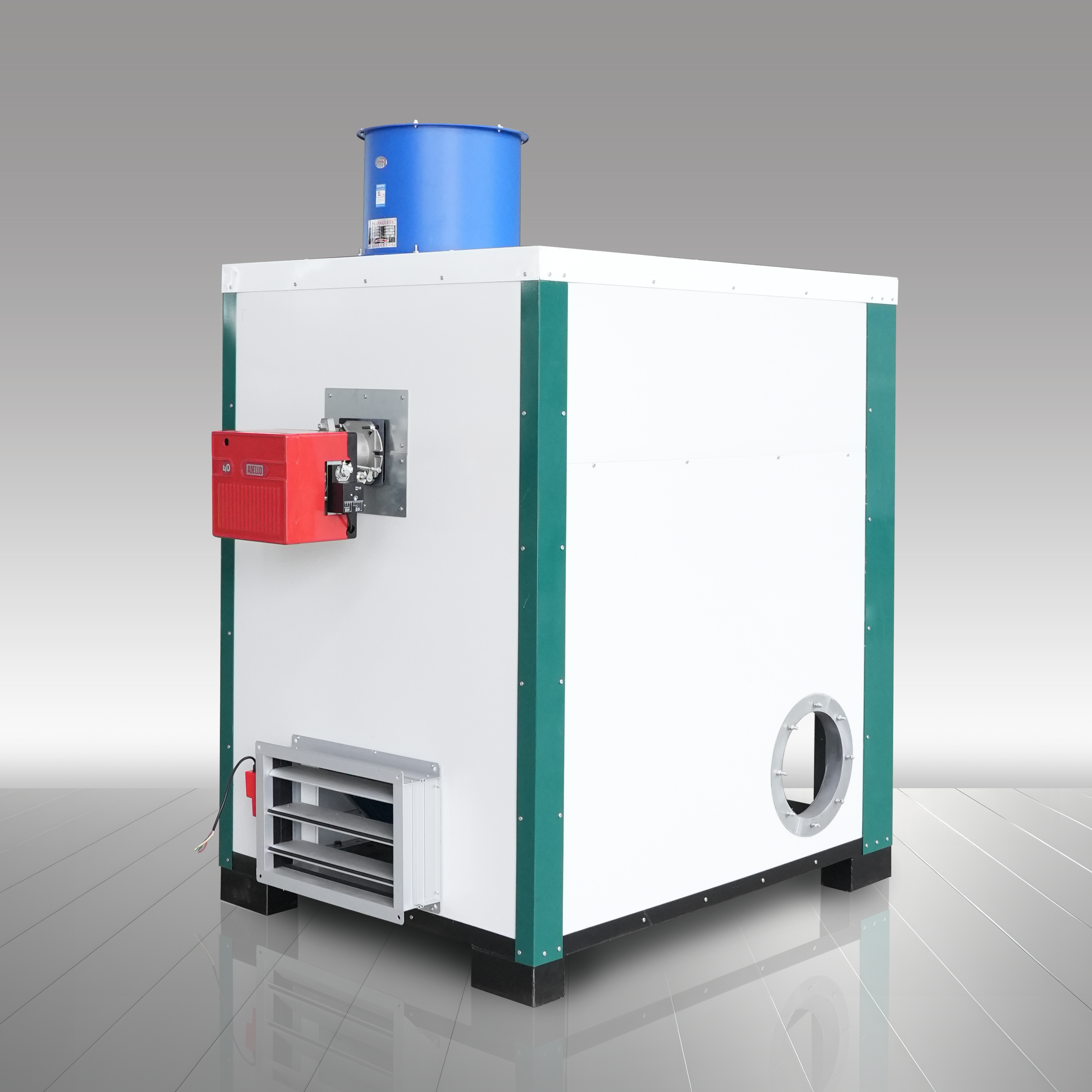

Real photos

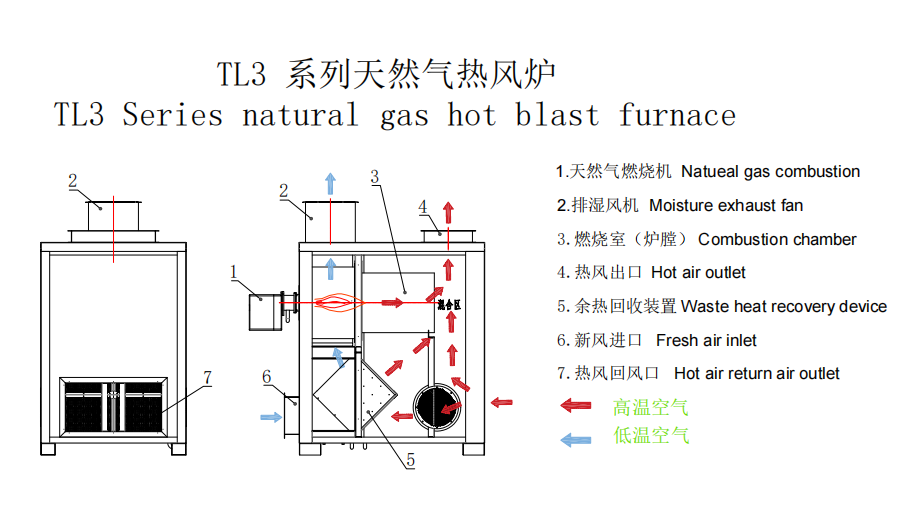

Working Schematic Diagram
1. TL3 Series natural gas hot blast furnace includes natural gas burner, moisture exhaust fan, combustion chamber, hot air outlet, waste heat recovery device, fresh air inlet and hot‑air return outlet.
2. Low‑temperature fresh air enters via the fresh air inlet and passes through the waste heat recovery device for pre‑heating.
3. The natural gas burner generates heat inside the combustion chamber.
4. Return hot air from the drying system mixes with heated air inside the unit.
5. High‑temperature air is delivered out from the hot air outlet for drying work.
6. The moisture exhaust fan discharges humid air, and waste heat recovery improves overall energy efficiency.
Specifications
| Model TL3 (Left-right circulation) |
Output heat (×104Kcal/h) |
Output temperature (℃) |
Output air volume (m³/h) |
Weight (KG) |
Dimension(mm) | Power (KW) |
Material | Heat exchange mode | Fuel | Atmospheric pressure | Traffic (NM3) |
Parts | Applications |
| TL3-10 Natural gas direct burning furnace |
10 | Normal temperature to 130 | 16500--48000 | 460 | 1160*1800*2000 | 3.4 | 1.High temperature resistant stainless steel for inner tank2.High-density fire-resistant rock wool for box3.Sheet metal parts are sprayed with plastic; remaining carbon steel4.Can be customized by your requirements | Direct combustion type | 1.Natural gas 2.Marsh gas 3.LNG 4.LPG |
3-6KPa | 15 | 1. 1 pcs burner2. 6-12 pcs circulating fans3. 1 pcs furnace body4. 1 pcs electric control box | 1. Supporting drying room, dryer and drying bed.2, Vegetables, flowers and other planting greenhouses3, Chickens, ducks, pigs, cows and other brooding rooms4, workshop, shopping mall, mine heating5. Plastic spraying, sand blasting and spray booth6. Rapid hardening of concrete pavement7. And more |
| TL3-20 Natural gas direct burning furnace |
20 | 580 | 1160*2800*2000 | 6.7 | 25 | ||||||||
| TL3-30 Natural gas direct burning furnace |
30 | 730 | 1160*3800*2000 | 10 | 40 | ||||||||
| 40, 50, 70, 100 And above can be customized. |
