WesternFlag – TL2 Natural Gas Furnace (Left-right alternating circulation)
Product Overview
Heat source : Natural Gas
Airflow direction: Left-Right Circulation
Matching Drying Room : HH Series Tray Type Drying Rooms
Features : Multi axial circulation fans for large air volume ｜ Stable left-right horizontal airflow ｜ Even heat distribution｜ Adjustable fan rotation direction for air supply & return
Advantages
1. Basic design and simple setup.
2. Considerable airflow and minimal airflow temperature variation.
3. Durable internal tank resistant to extreme heat, made of stainless steel.
4. Self-regulating gas burner, achieving full combustion and excellent effectiveness of the process. (Once installed, the system can autonomously manage ignition+cease fire+automatic temperature adjustment).
5. Insulation box of high-density fireproof rock wool to prevent heat loss.
6. Fan with resistance to high temperatures and humidity, boasting an IP54 protection grade and H-class insulation grade.
7. Combining the system for dehumidification and supplying fresh air, leading to minimal heat loss through the waste heat recovery device.
8. Fresh air replenishment happening automatically.
9. Applications：
- Vegetable, flower, and other planting greenhouses
- Poultry and livestock breeding warm houses (chicks, ducks, pigs, cattle, etc.)
- Heating for workshops, shopping malls, and mining sites
- Powder coating, sandblasting, and paint baking rooms
- Rapid curing of concrete pavements

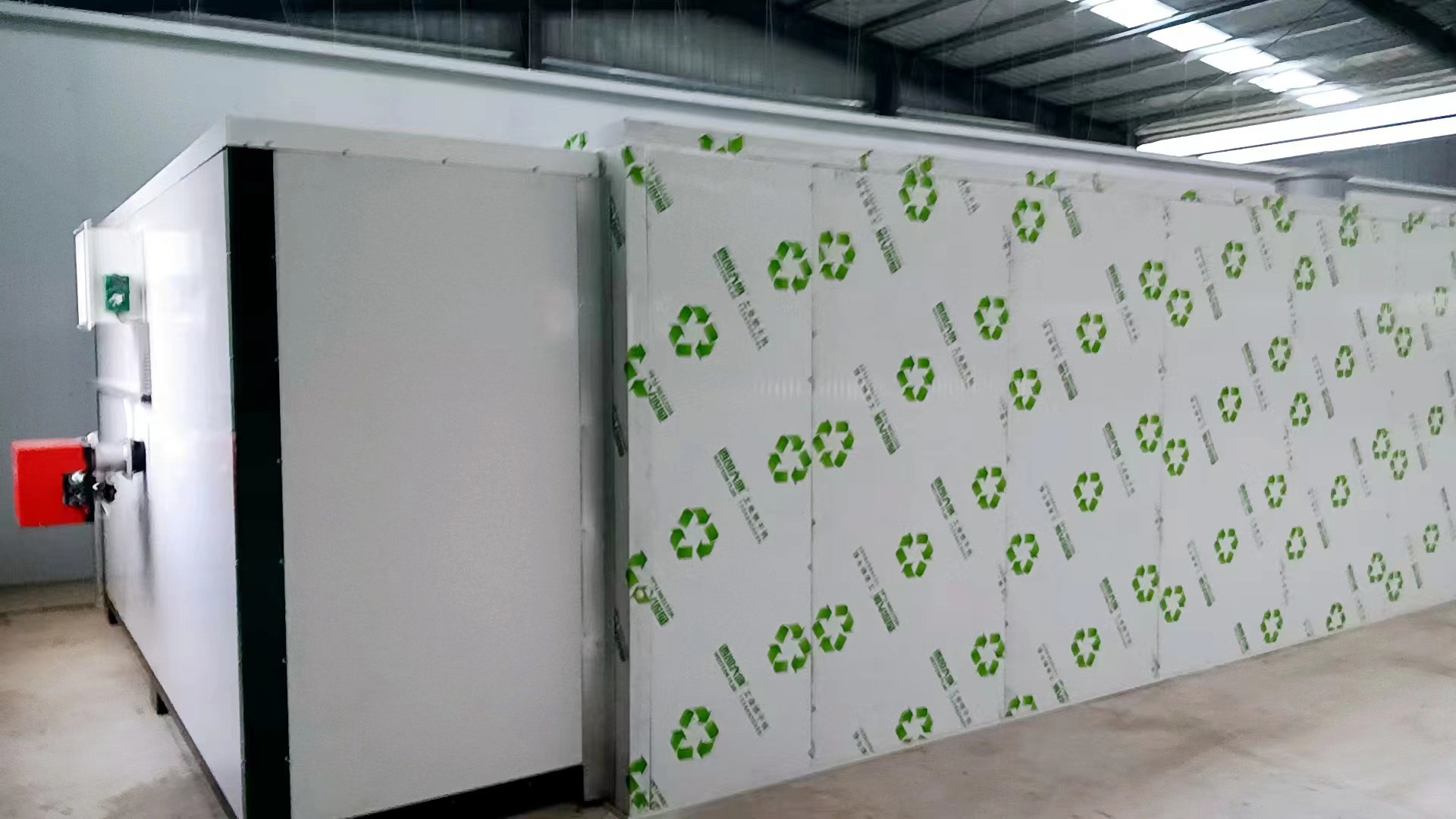

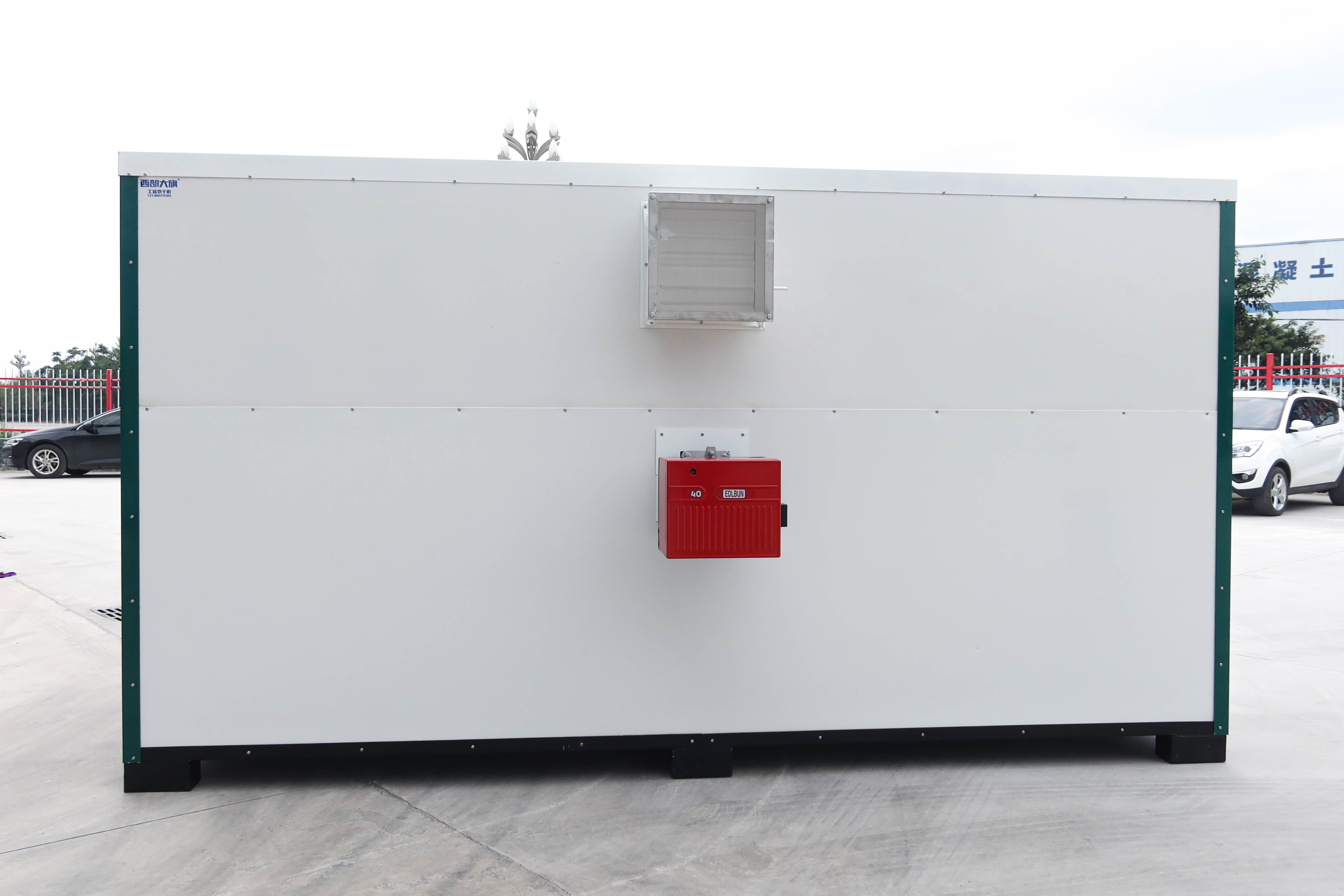

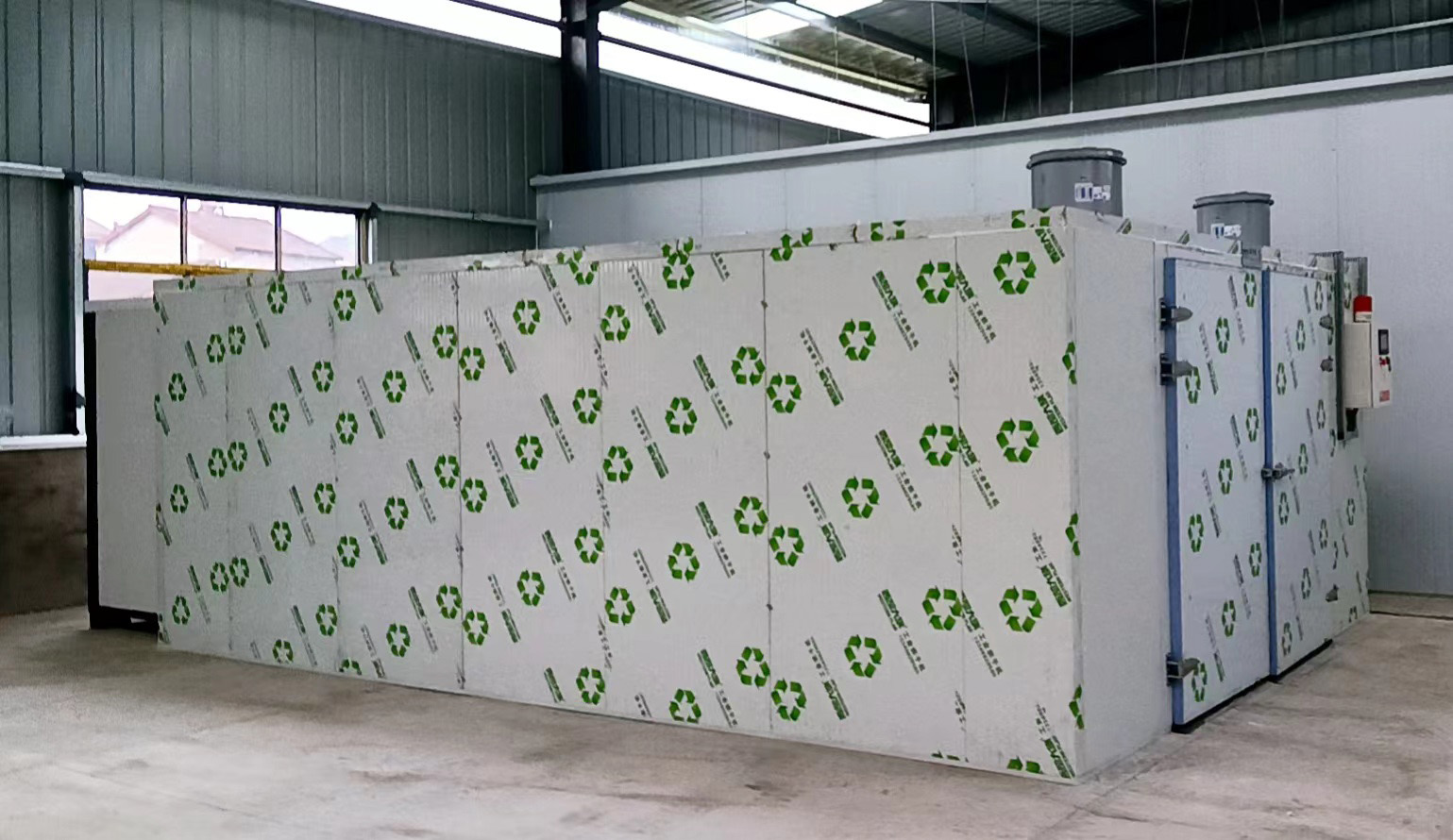

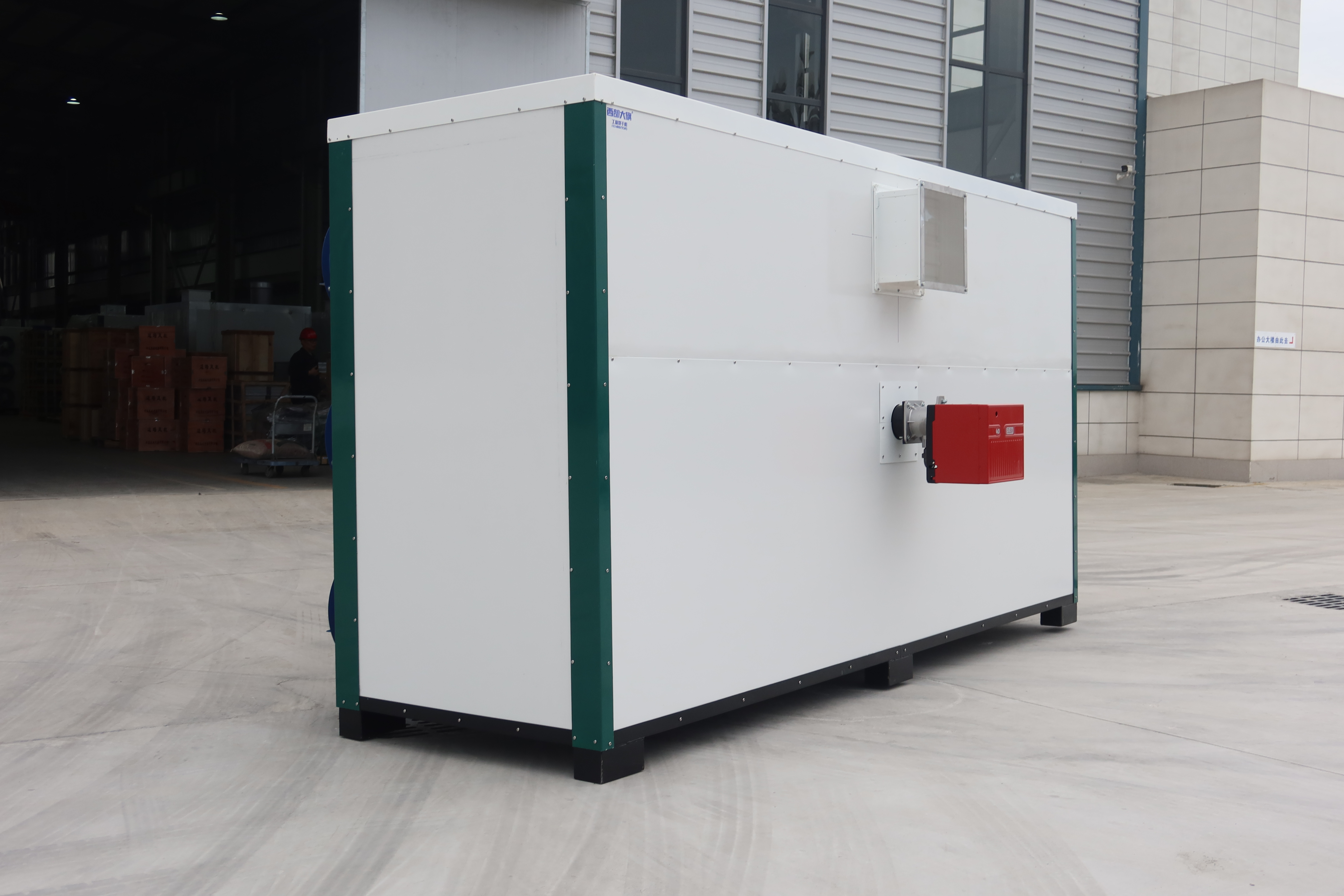

Real Photos
Working Schematic Diagram
1. TL2 Series natural gas hot blast furnace is composed of natural gas burner, circulation fans, combustion chamber and fresh air inlet.
2. Low‑temperature fresh air enters from the fresh air inlet.
3. The natural gas burner performs combustion inside the combustion chamber to generate high‑temperature heat.
4. Multiple circulation fans drive airflow, evenly delivering high‑temperature air from multiple outlets.
5. Large‑volume parallel‑fan structure realizes uniform air output for large‑scale drying scenarios.
Specifications
| Model TL2 (Upper outlet and Lower inlet+Waste heat recovery) |
Output heat (×104Kcal/h) |
Output temperature (℃) |
Output air volume (m³/h) |
Weight (KG) |
Dimension (mm) |
Power (KW) |
Material | Heat exchange mode | Fuel | Atmospheric pressure | Traffic (NM3) |
Parts | Applications |
| TL2-10 Natural gas direct burning furnace |
10 | Normal temperature to 130 | 4000 to 20000 | 425 | 1300*1600*1700 | 1.6 | 1.High temperature resistant stainless steel for inner tank2.High-density fire-resistant rock wool for box3.Sheet metal parts are sprayed with plastic; remaining carbon steel4.Can be customized by your requirements | Direct combustion type | 1.Natural gas 2.Marsh gas 3.LNG 4.LPG |
3-6KPa | 15 | 1. 1 pcs burner2. 1-2 pcs dehumidifying fans3. 1 pcs furnace body4. 1 pcs electric control box5. 1 pcs fresh air damper6. 1-2 pcs blowers7. 2 pcs waste heat recoverers. | 1. Supporting drying room, dryer and drying bed.2, Vegetables, flowers and other planting greenhouses3, Chickens, ducks, pigs, cows and other brooding rooms4, workshop, shopping mall, mine heating5. Plastic spraying, sand blasting and spray booth6. And more |
| TL2-20 Natural gas direct burning furnace |
20 | 568 | 2100*1200*2120 | 3.1 | 25 | ||||||||
| TL2-30 Natural gas direct burning furnace |
30 | 599 | 2100*1200*2120 | 4.5 | 40 | ||||||||
| 40, 50, 70, 100 And above can be customized. |
