WesternFlag – TL1 Natural Gas Furnace (Bottom air outlet & top air inlet)
Product Overview
Heat source :Natural Gas
Airflow direction: Bottom Outlet & Top Inlet
Matching Drying Room : Drying Beds
Features: Simple structure, easy installation ｜ Direct bottom-up heating, fast temperature rise ｜ Cost-effective solution ｜ Straight parallel airflow for stable heating
Advantages
1. Uncomplicated structure and economical
2. Generous air volume and minimal air temp fluctuation
3. Enduring stainless steel thermally resistant enclosed container
4. Automated gas igniter, thorough combustion, heighted effectiveness. (Following installation, the system has automatic control for ignition+shut-off+temperature adjustment)
5. Dense fire-resistant rock wool protective case to preventthermal losses
6. High temp and high humidity enduring ventilator with IP54 safety rating and H-level insulation rating.
7. Applications：
- Vegetable, flower, and other planting greenhouses
- Poultry and livestock breeding warm houses (chicks, ducks, pigs, cattle, etc.)
- Heating for workshops, shopping malls, and mining sites
- Powder coating, sandblasting, and paint baking rooms
- Rapid curing of concrete pavements

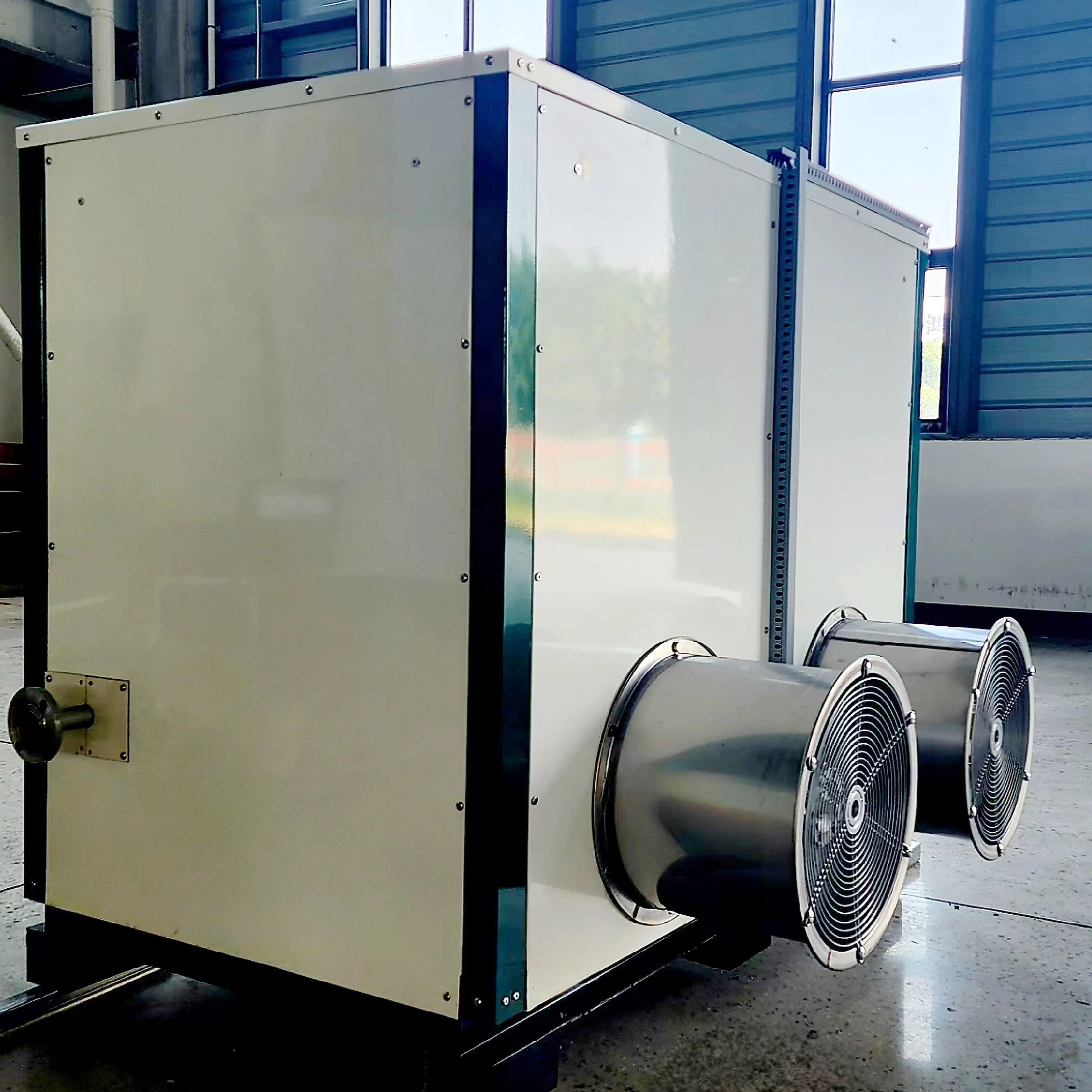

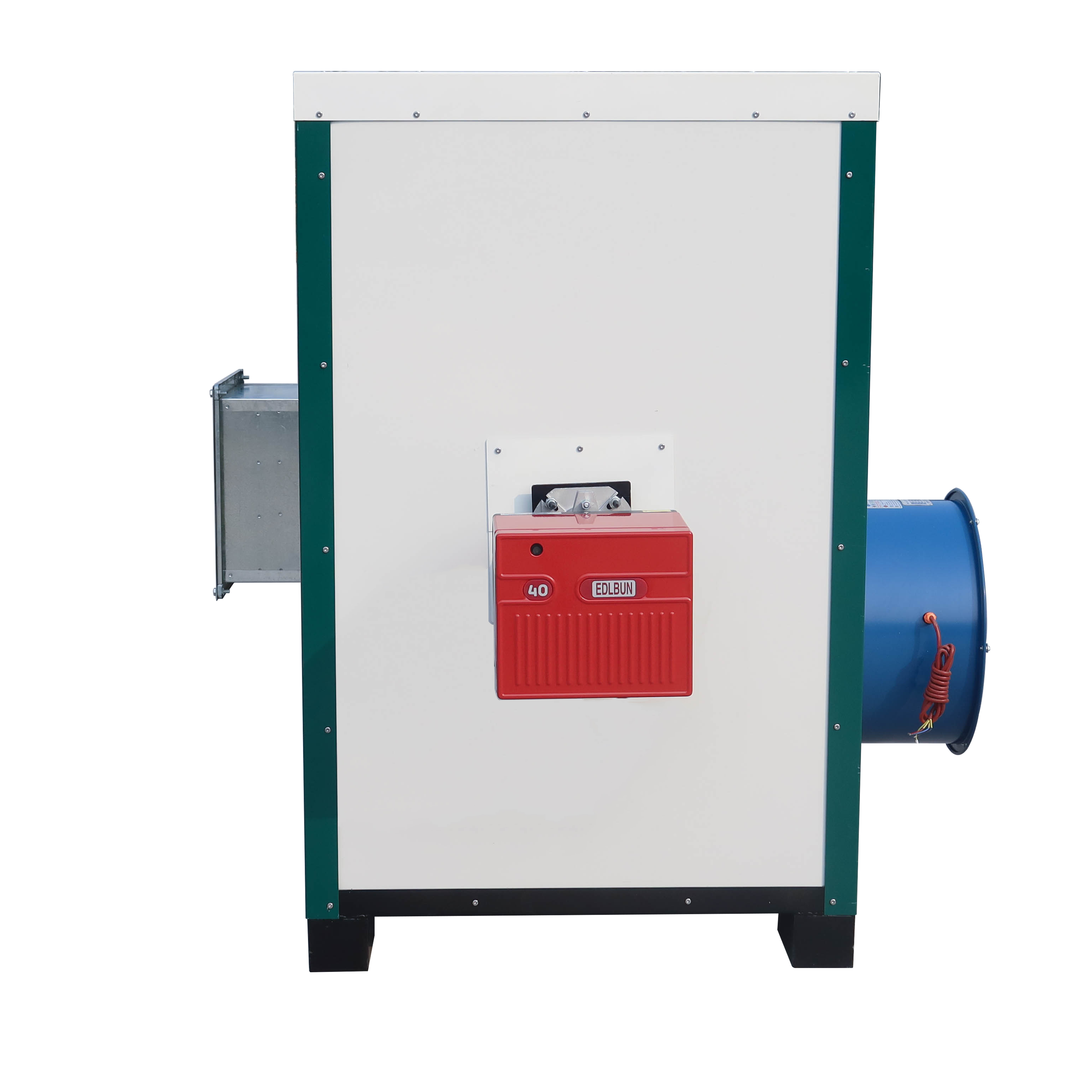

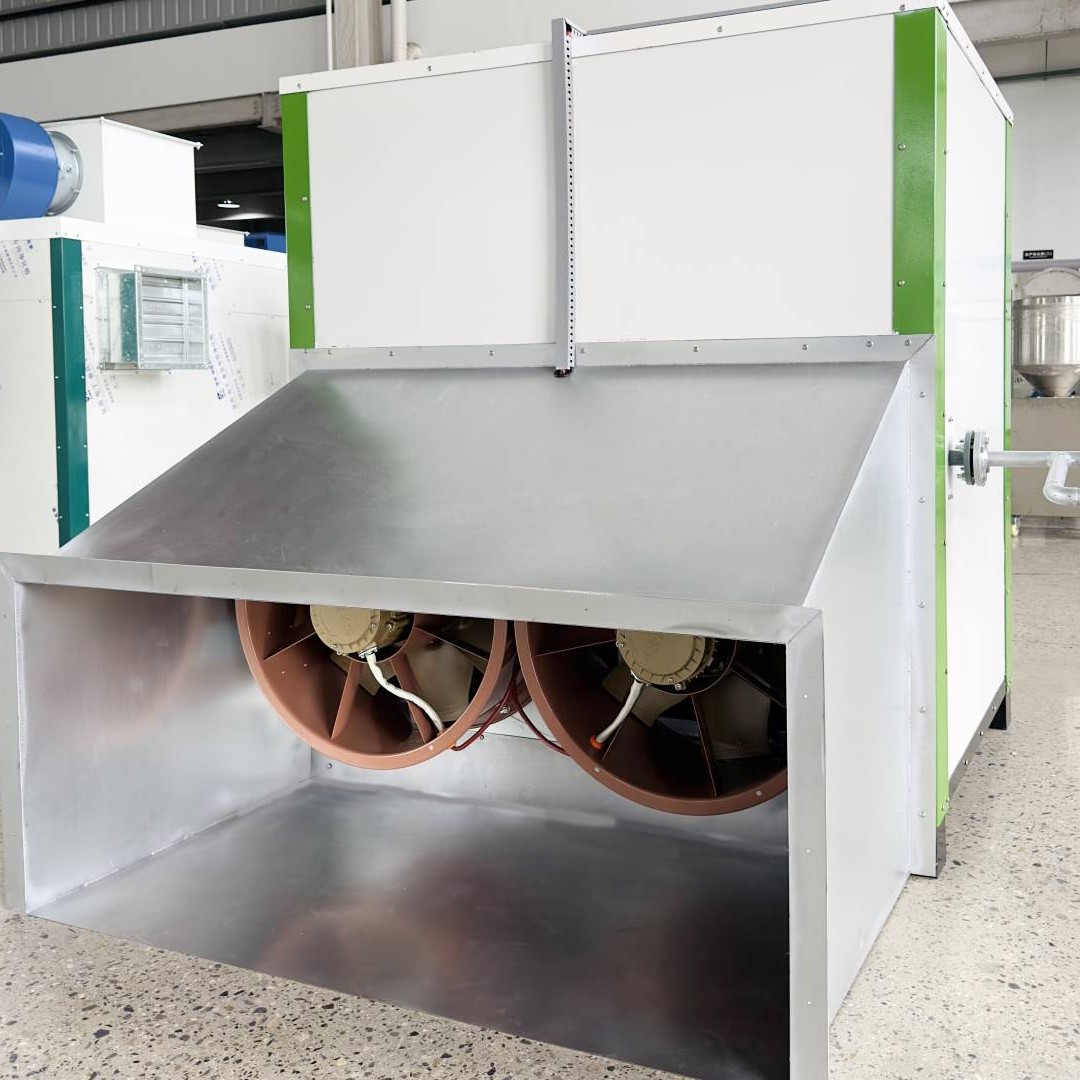

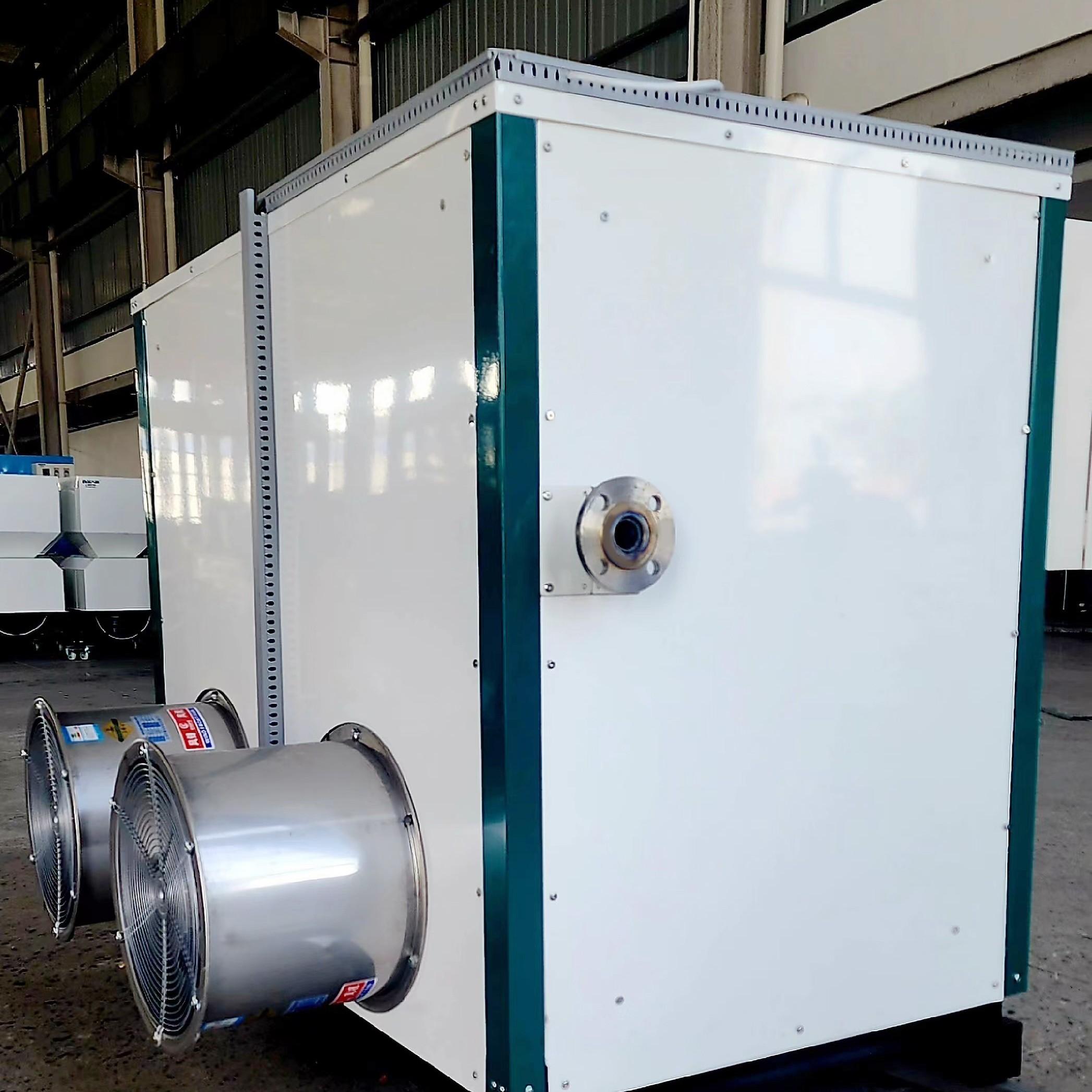

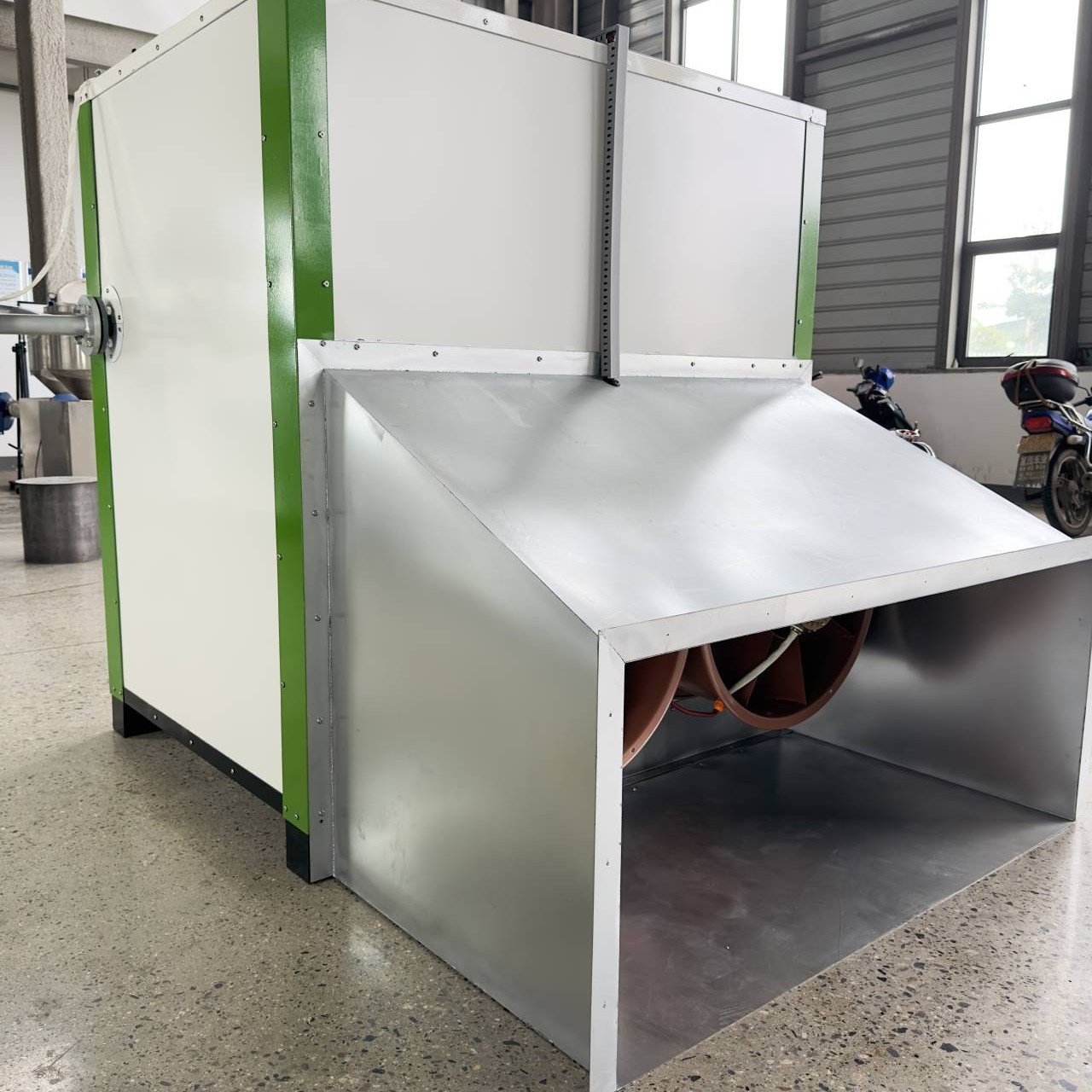

Real photo

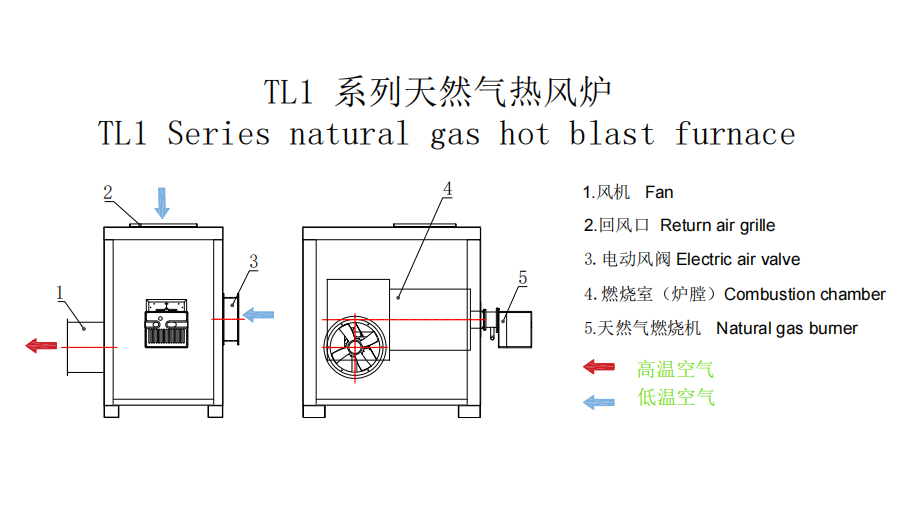

Working Schematic Diagram
1. TL1 Series natural gas hot blast furnace consists of fan, return air grille, electric air valve, combustion chamber and natural gas burner.
2. Low‑temperature air enters through the electric air valve, and partial air returns via the return air grille.
3. The natural gas burner ignites inside the combustion chamber to generate heat.
4. The fan pushes air through the combustion chamber to form high‑temperature air.
5. Hot air is delivered outward for drying processes, with adjustable air intake for stable temperature output.
Specifications
| Model TL1 (Upper Inlet and Lower outlet) |
Output heat (×104Kcal/h) |
Output temperature (℃) |
Output air volume (m³/h) |
Weight (KG) |
Dimension (mm) |
Power (KW) |
Material | Heat exchange mode | Fuel | Atmospheric pressure | Traffic (NM3) |
Parts | Applications |
| TL1-10 Natural gas direct burning furnace |
10 | Normal temperature - 130 | 4000 - 20000 | 330 | 770*1200*1330 | 1.6 | 1.High temperature resistant stainless steel for inner tank2.High-density fire-resistant rock wool for box3.Sheet metal parts are sprayed with plastic; remaining carbon steel4.Can be customized by your requirements | Direct combustion type | 1.Natural gas 2.Marsh gas 3.LNG 4.LPG |
3-6KPa | 15 | 1. 1 pcs burner2. 1-2 pcs induced draft fans3. 1 pcs furnace body4. 1 pcs electric control box | 1. Supporting drying room, dryer and drying bed.2, Vegetables, flowers and other planting greenhouses3, Chickens, ducks, pigs, cows and other brooding rooms4, workshop, shopping mall, mine heating5. Plastic spraying, sand blasting and spray booth6. Rapid hardening of concrete pavement7. And more |
| TL1-20 Natural gas direct burning furnace |
20 | 420 | 950*1300*1530 | 3.1 | 25 | ||||||||
| TL1-30 Natural gas direct burning furnace |
30 | 450 | 950*1300*1530 | 4.5 | 40 | ||||||||
| 40、50、70、100And above can be customized. |
